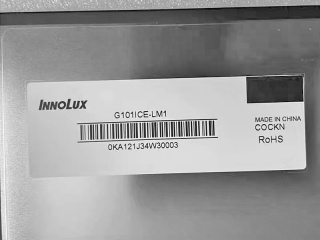

G101ICE-LM1

Panel Brand	Innolux	panel model	G101ICE-LM1
Panel size	10.1-inch	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	1280(RGB)x800,WXGA,149PPI	pixel layout	RGB vertical stripes
display area	216.96(W)x135.6(H) mm	Appearance size	227.42(W)x147.69(H)x4.85(D) mm
visible size		surface treatment	Hard coating(3H)
Brightness (cd/m²)	350 (Typ.)	contrast	800:1(Typ.) [Transmission]
best angle	full-view	optical mode	AAS, normally black display, transmissive
visual Angle	89/89/89/89 (Typ.) (CR≥10)	response speed	13/12 (Typ.) (Tr/Td) ms
number of colors	262K/16.7M , 75% NTSC	Backlight type	WLED,50K hours with LED driver
Screen Weight	183/190g (Typ./ Max.)	be the same with	industrial engineering
refresh rate	60Hz	touch function	touchless
signaling system	LVDS (1 ch,6/8-bit), Terminals, 30 pins
supply voltage	5.0V (Typ.)
maximum rated	Storage temperature: -20~70 °C Working temperature: -10~60 °C
