Wide Temperature Operation, 800 Nits High Brightness, Easily Replaceable Backlight, White LED Backlight, 50,000+ Hours Lifespan, Integrated LED Driver, Display Flip (Vertical/Horizontal) Support, Selectable 6/8-Bit Grayscale, Mirror Surface, EcoTR Technology.

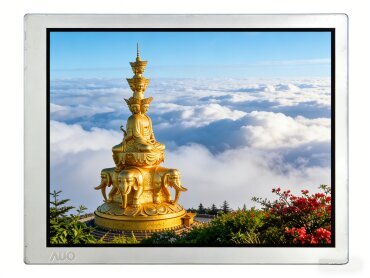

AUO G065VN01 V2 is a 6.5-inch industrial TFT LCD panel moudle that adopts a-Si TFT LCD technology. Featuring 800 nits high brightness and a wide operating temperature range of -30°C to 80°C, G065VN01 V2 is widely used in industrial HMI display panel and outdoor vending machine display. For equipment manufacturers developing handheld display devices, outdoor industrial HMI display devices, vending machines with LCD screens, or medical display devices, 6.5 inch LVDS LCD display G065VN01 V2 can realize high brightness with a compact mechanical space and rugged surface treatment. The integrated LED driver board and LVDS interface simplify system integration while reducing additional hardware complexity.
If your device remain readable under sunlight, stable across temperature extremes, and reliable in long-term field deployment, AUO G065VN01 V2 provides a good LCD display solution.
✅️In stock & ready to ship. Best price available. Request a quote now!
| Brand | AUO | Type | a-Si TFT-LCD, LCM |
| Model | G065VN01 V2 | Surface Finish | Mirror, Hard Coating (3H), Anti-reflection treatment |
| Size (inch) | 6.5 | Pixel Layout | RGB Vertical Strip |
| Outline Dimension (WxHxD mm) | 153×118×11.2 | Optical Mode | TN,Normally white display, TM |
| Active Area (WxH mm) | 132.48×99.36 | Backlight Type | WLED, 50K hours, with LED driver |
| Visual Area (WxH mm) | 135.9×102.8 mm | Interface | LVDS (1 ch, 6/8-bit), Connectors, 20 pins |
| Optimal Visual Angle | 6 o'clock | Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Resolution | 640 (RGB)×480, VGA,122PPI | Response Time | 15/10 (Typ.) (Tr/Td) ms |
| Brightness (cd/m²) | 800 | Display Colors | 262K/16.2M, 55%NTSC |
| Contrast Ratio | 600:1 (Typ.) (TM) | Operating Temperature (°C ) | -30~ 80 |
| Operating Voltage | 3.3V (Typ.) | Storage Temperature (°C ) | -30~80 |
| Operating Frequency | 60Hz | Weight | 170g (Typ.) |
| Application | Industrial HMI Display/Outdoor LCD Screen Vending Machine | ||
Zhengzhou Hengxinda Technology Co., Ltd. is a AUO industrial LCD display module supplier for 15 years. We mainly provide brand new industrial TFT LCD display panel including AUO, Innolux, IVO, BOE, Sharp and Kyocera etc. We also provide matching accessories such as LCD controller boards, touch screen including resistive touch screen, capacitive touch screen and infrared touch screen, custom cable and LED driver boards. And we can also offer custom LCD TFT display solutions or custom touch panel service according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
✅️We specialize in providing customized LCD display solutions. No matter your project requires special sizes, interfaces, or functions, we can tailor-make it for you. Contact us to empower your product！
1. How about AUO G065VN01 V2 price?
A:Prices vary depending on your requirements. Relatively speaking, our prices are in the lower-middle range of the indstrial TFT LCD display industry. We source directly from AUO factory, ensuring original LCD panel at the factory, resulting in better prices and higher quality. Welcome to contact us for detailed information.
2. What do you do?
A: We are a professional provider of LCD display solutions founded in 2013. Our core business is to supply high-quality industrial TFT LCD display modules from leading brands such as AUO, Innolux, and BOE.
3. Besides the LCD panel, do you also provide other related products?
A: Yes, we offer complete display accessories, including various touch screens (resistive touch screen, capacitive touch screen, infrared touch screen), custom cables, backlight driver boards, LCD controller boards (LVDS/eDP driver boards), LED driver boards, and brightness adjustment converters, forming a one-stop solution.
4. Do you support customized LCD displays?
A: Yes, we support customization, including non-standard sizes, specific resolutions, special interface definitions, wide temperature and voltage ranges, high-brightness anti-glare processing, etc. The customization service usually has a minimum order quantity requirement. For details, please send an inquiry to contact the sales manager.
5. How do I buy AUO Go65VN01 V1?
A: Click the form below or the contact navigation bar on the side to contact us for the best price, free technical specifications, and free customized display solutions.
| Brand | Model Name | Size | Resolution | Brightness | Contrast Ratio | Backlight Type | Interface | pins | Operation Temperature | Download PDF | Add Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tianma | P0650VGF2MA20 | 6.5" | 640×480 | 900 nits | 800:1 | WLED | LVDS | 20 | -20~70 ° C | ||
| Tianma | P0650VGF2MB30 | 6.5" | 640×480 | 650 nits | 800:1 | WLED | LVDS | 20 | -30~80 ° C | ||
| Tianma | P0650VGF2MB31 | 6.5" | 640×480 | 650 nits | 800:1 | WLED | TTL | 31 | -30~ 80 ° C | ||
| Tianma | P0650VGF2MA30 | 6.5" | 640×480 | 1100 nits | 800:1 | WLED | LVDS | 20 | -30~80 ° C | ||
| Tianma | P0650VGF1MA10 | 6.5" | 640×480 | 800 nits | 900:1 | WLED | LVDS | 20 | -30~80 ° C | ||
| Tianma | P0650VGF1MA00 | 6.5" | 640×480 | 1200 nits | 900:1 | WLED | LVDS | 20 | -30~80 ° C | ||
| AUO | G065VN01 V221 | 6.5" | 640×480 | 800 nits | 1000:1 | WLED | LVDS | 20 | -20 ~70 °C | ||
| Sharp | LX065A1BB04 | 6.5" | 1080×2340 | 1500:1 | No Backlight | -20~70℃ | |||||
| Kyocera | C0650VG65200-BT-AB | 6.5" | 640×480 | 800 nits | 800:1 | WLED | Parallel RGB | 31 | -20~70℃ |
