Easy-to-replace backlight, lifespan exceeding 50,000 hours, 180° flip display, optional 6- or 8-bit grayscale, and matte surface.

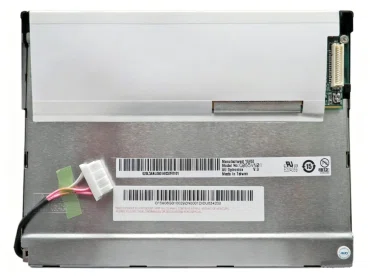

AUO G065VN01 V0 is a 6.5-inch LCD panel module based on a-Si TFT-LCD technology. It is equipped with a CCFL backlight but does not include a LED backlight driver board or touch functionality. It operates normally within a temperature range of -20 to 70°C, can be stored between -20 and 80°C, and has a vibration resistance of 1.5G (14.7 m/s²). G065VN01 V0 has a display resolution of 640 (RGB) × 480 (VGA), a 4:3 aspect ratio, RGB vertical pixel arrangement, a matte surface finish, and a hard coating (3H). For backlight, AUO G065VN01 V0 uses 2 CCFL side-lit light sources with a lifespan of 50,000 hours. G065VN01 V0 uses an LVDS (1 channel, 6/8-bit) signal interface with a total of 31 pins, connected via connectors, and operates at a drive voltage of 3.3V (Typ.). Based on these features, G065VN01 V0 is widely used in industrial HMI panels, portable controllers, medical display devices, in-vehicle display devices, and facial recognition equipment. Below are the key specifications for AUO G065VN01 V0.
Brand
AUO
Type
a-Si TFT-LCD, LCM
Model
G065VN01 V0
Surface Finish
Matte, Hard Coating (3H)
Size (inch)
6.5-inch
Pixel Layout
RGB Vertical Strip
Outline Dimension
153×118×11.2 mm (H×V×D)
Optical Mode
TN, Normally White Display, TM
Active Area
132.48×99.36 mm (H×V)
Backlight Type
2 pcs CCFL, 50K hours, without LED driver
Visual Area
135.9(W)×102.8(H) mm
Interface
LVDS (1 ch, 6/8-bit), 31 pins , Connector
Optimal Visual Angle
6 o'clock
Viewing Angle
80/80/70/70 (Typ.)(CR≥10)
Resolution
640(RGB)×480, VGA, 4:3
Response Time
15/10 (Typ.)(Tr/Td) ms
Brightness (cd/m²)
500
Display Colors
262K/16.2M, 55% NTSC
Contrast Ratio
600 : 1 (Typ.) (TM)
Operating Temperature (°C )
-20 ~ 70
Operating Voltage
3.3V (Typ.)
Storage Temperature (°C )
-20 ~ 80
Operating Frequency
60Hz
Touch Function
No
Power Consumption
3.65/4.41W (Typ./Max.)
Weight
200g
Application
Industrial Control/Medical Image
Production State
Out of Production
Zhengzhou Hengxinda Technology Co., Ltd. has been in the industrial display field for 15 years. We are a top industrial LCD panel supplier for famous manufacturing such as AUO, BOE, IVO, Sharp, Chimei Innolux, and Kyocera. We independently develop and manufacture industrial-grade touch screens, matching LCD driver boards, LED constant-current boards, as well as various industrial cables and related accessories. And we can also offer custom LCD display solutions according to your personalized needs. Whether you are exploring new LCD panel solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.
Why Choose Hengxinda Industrial LCD Panel?
a. Global Shipping – Fast and reliable global shipping service. We'll provide you with the tracking number immediately after shipment, allowing you to easily track your order.
b. Quality Assurance – 100% testing before shipment. Test videos can be sent to you if necessary.
c. Technical Support – Assistance with integration and compatibility issues and free technical specifications.
d. Adequate Inventory – Stable supply from the source factory to meet continuous production needs.
e. Factory Direct Pricing – Highly competitive prices for samples and bulk orders.
f. One-Stop Shopping Experience – We provide customized display solutions, offering matching touchscreens, driver boards, and custom cables.
We guarantee we supply 100% original AUO industiral TFT LCD displays in original packaging, and conduct rigorous quality control before shipment. Each LCD display undergoes a comprehensive series of tests to ensure: No dead pixels or visual defects. Consistent brightness and uniform color. Uses genuine AUO packaging and labels. Fully complies with manufacturer specifications.
1. Do you have AUO G065VN01 V0 in stock?
A: We have only a limited quantity of G065VN01 V0 in stock. Furthermore, this model has been discontinued, and our remaining inventory is low. If it is out of stock at the time of your inquiry, we can provide a fully compatible alternative to facilitate testing for your project.
2. Does AUO G065VN01 V0 have a brightness of 500 nits, making it suitable for outdoor use?
A: The brightness ofG065VN01 V0 is suitable for use in bright indoor environments. This brightness level may not allow for clear visibility of the screen content outdoors. If you plan to use this model for outdoor equipment, we recommend switching to a display panel with higher brightness. Please contact us for detailed display solutions.
3. Can you provide matching accessories?
A: Absolutely. We offer compatible driver boards, resistive touch panels, capacitive touch panels, infrared touch panels, LED backlight driver boards, custom cables, and other related accessories. You can enjoy a one-stop shopping experience with us.
4. What kind of company are you?
A: We are a distributor specializing in industrial LCD screens, offering industrial-grade LCD panels from world-class brands such as AUO, BOE, IVO, Chimei Innolux, Sharp, and Kyocera. We also operate our own factory to manufacture related LCD panel accessories.
5. How can I contact you?
A: Click “Send Inquiry” below or click the information navigation bar on the right to contact us and obtain a customized display solution for your LCD screen.
