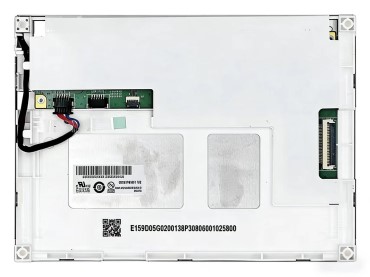

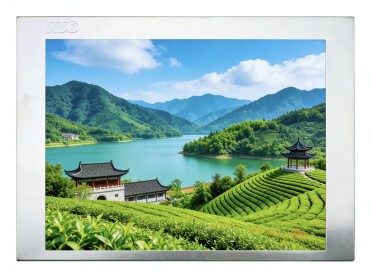

G057VN01 V220

G057VN01 V220

Wide Temperature Operation, 700 nit High Brightness, White LED Backlight, 70,000+ Hours Lifespan, Integrated LED Driver, Display Flip (Vertical/Horizontal) Support, Anti-Glare (Matte) Surface.

Download PDF Send Message

5.7" 640x480 VGA 700nit Wide Temperature LCD Display | AUO G057VN01 V220

AUO G057VN01 V220 is a 5.7-inch industrial LCD display module built for delivering 700 nits brightness, -30°C to 85°C operation, and an 70,000-hour backlight life in a compact form factor that fits anywhere. It is also called G057VAN01.0. The 700 nits brightness ensures that operators can read critical data even when the sun is directly behind them. And then there's the 70,000-hour backlight life. For equipment that runs around the clock—surveillance systems, critical monitoring, infrastructure control—this means the TFT LCD display will likely outlast every other component in your system.



AUO G057VN01 V220 Basic Parameters

Panel Brand AUO Panel Model G057VN01 V220
Panel Size 5.7-inch Panel Type a-Si TFT-LCD, LCD Module
Resolution 640(RGB)×480, VGA, 141PPI Pixel Layout RGB vertical stripes
Display Area 115.2(W)×86.4(H) mm Appearance Size 144(W)×104.6(H)×12.8(D) mm
Brightness (cd/m²) 700 (Typ.) Contrast Ratio 1000 : 1 (Typ.) [Transmission]
Visual Angle 89/89/89/89 (Typ.) (CR≥10)  Surface Treatment Matte, Hard coating (3H)
Display Colors 262K, 50% NTSC Optical Mode AHVA, normally black display, transmissive
Panel Weight 150/165g (Typ./ Max.) Response Time 15/10 (Typ.) (Tr/Td) ms
Optimal Visual Angle Full-view Backlight WLED, 70K hours, with LED driver
Working Frequency 60Hz  Application Industrial Engineering
Interface CMOS (1 ch, 6-bit), Connector, 33 pins Touch Function No
Driving Voltage 3.3V (Typ.)
Application Environment Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C

Product Comparison: G057VN01 V2 vs. G057VN01 V220 (G057VAN01.0)

Feature

G057VN01 V2 (Previous Model)

G057VN01 V220 (New Generation)

Also Known As

-

G057VAN01.0

Panel Size

5.7 inches

5.7 inches

Resolution

640(RGB)×480 (VGA)

640(RGB)×480 (VGA)

Pixel Density

141 PPI

141 PPI

Display Mode

TN, Normally White, Transmissive

AHVA, Normally Black, Transmissive

Viewing Direction

12 o'clock

Full View

Viewing Angle

80/80/70/70

89/89/89/89

Brightness

700 cd/m²

700 cd/m²

Contrast Ratio

800:1

1000:1

Surface Treatment

Matte, Hard coating (3H)

Matte, Hard coating (3H)

Response Time

15/10 (Tr/Td) ms

15/10 (Tr/Td) ms

Display Colors

262K, 50% NTSC

262K, 50% NTSC

Backlight Type

WLED, 50K hours, with LED driver

WLED, 70K hours, with LED driver

Interface

CMOS (1 ch, 6-bit), 33 pins

CMOS (1 ch, 6-bit), 33 pins

Operating Temperature

-30 ~ 85 °C

-30 ~ 85 °C

Weight

150/165g

150/165g

Outline Dimensions

144×104.6×12.8 mm

144×104.6×12.8 mm

Key Upgrade Highlights

1.Display Technology Upgrade: Upgraded from traditional TN panel to AHVA wide-angle technology. The viewing angle is enhanced to full view (89/89/89/89) , ensuring consistent color and contrast when viewed by multiple people simultaneously.

2. Improved Image Quality: Thanks to AHVA normally black technology, the contrast ratio has increased from 800:1 to 1000:1, resulting in deeper blacks and richer image depth.

3. Extended Lifespan: The LED backlight life has been significantly improved from 50,000 hours to 70,000 hours. Under 24/7 continuous operation, AUO G057VN01 V220 can significantly reduce long-term maintenance costs.

Why Partner with HXD for LCD TFT Displays?

As a leading China supplier of industrial TFT LCD display module solutions, Zhengzhou Hengxinda Technology Co,. Ltd specializes in the R&D and production of LCD TFT panel products with high performance, outstanding cost-effectiveness and reliable quality. And we can also offer tailor-made LCD TFT display solutions according to your personalized needs. Whether you are exploring new LCD TFT display solutions or looking to establish a long-term and stable supply partnership, our team is ready to provide you with free professional consulting, the latest product information, and free quotation support with strong market competitiveness.

Why Choose HXDLCD?

• One-stop Shopping: In addition to fully custom LCD display modules, we also provide supporting control boards, digital cables and touch screen solutions — all products can be purchased together.

• Customization Flexibility: Product dimensions, touch screen types and control board options can all be customized to meet the specific needs of your projects.

• Secure After-Sales Service: We offer a 1-year official warranty. For screens with non-human damage within the warranty period, free replacement or repair is provided.

Technology defines experience, and choices shape products. Welcome to contact us 📮&☎️.

FAQ:

Q1: What's the difference between G057VN01 V220 and G057VN01 V2?

A: The AUO G057VN01 V220 is an upgraded version of the G057VN01 V2. Key upgrades include: upgrading from a TN panel to AHVA full-viewing-angle technology, increasing the viewing angle to 89/89/89/89; increasing the contrast ratio from 800:1 to 1000:1; and extending the backlight lifespan from 50,000 hours to 70,000 hours. Both have identical interface definitions and dimensions, allowing for direct replacement without modifying your existing design.

Q2: Is the AUO G057VN01 V220 truly visible in direct sunlight?

A: Absolutely. The AUO G057VN01 V220 boasts a typical brightness of 700 nits, more than twice that of ordinary industrial screens. Combined with its matte anti-reflective treatment, the screen content remains clearly readable even under direct midday sunlight. Especially suitable for outdoor parking payment terminals, logistics handheld devices, and agricultural machinery—scenarios requiring operation under strong light.

Q3: What is the sample policy?

A: We support customer-paid sample testing. Samples are usually shipped within 1-2 business days. We can apply for a discount for subsequent bulk orders. We recommend that you conduct sample verification before formal bulk purchase to ensure it fully meets your application needs.

Q4: What if the screen is damaged during transportation?

A: We offer a 12-month warranty. For non-human-caused damage, you will enjoy free repair or replacement services. For damage occurring during transportation, we will arrange a replacement after receiving and confirming the goods. After the warranty period, we still provide lifetime cost-based repair services.
