Wide operating temperature, high brightness, easily replaceable backlight, WLED backlight with a lifespan of over 50,000 hours, includes LED driver, supports 180° flipping display, matte surface.

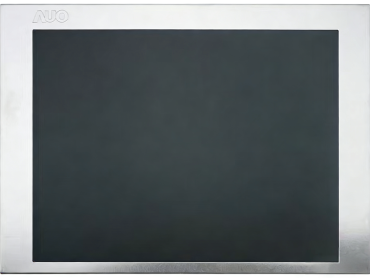

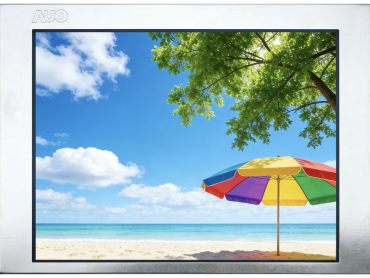

AUO G057VN01 V2 is a high-brightness, ultra-wide temperature range small a-Si TFT industrial LCD display module designed for demanding outdoor and mobile applications.
It addresses the display challenges through three core features: 1. Supports extreme operating temperatures from -30℃ to 85℃, completely eliminating image lag and ghosting caused by low temperatures, and brightness degradation and component aging caused by high temperatures. 2. 700 nits high brightness, combined with a matte hard-coating (3H) treatment, effectively suppresses glare and reflections in direct sunlight, ensuring excellent visibility and contrast even in bright outdoor environments. 3. Its compact physical size and light weight allow for easy integration into various handheld or embedded devices, helping engineers simplify internal layouts and accelerate product development.
Brand
AUO
Type
a-Si TFT-LCD, LCM
Model
G057VN01 V2
Surface Finish
Matte, Hard Coating (3H)
Size (inch)
5.7
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
144(W)×104.6(H)×12.8(D)
Optical Mode
TN,Normally white display, TM
Active Area (WxH mm)
115.2(W)×86.4(H)
Backlight Type
WLED, 50K hours, with LED driver
Viewing Angle
80/80/70/70 (Typ.)(CR≥10)
Interface
CMOS (1 ch, 6-bit), Connectors, 33 pins
Resolution
1600(RGB)×1200, VGA,141PPI
Response Time
15/10 (Typ.) (Tr/Td) ms
Brightness (cd/m²)
700
Display Colors
262K, 50%NTSC
Contrast Ratio
800:1 (Typ.) (TM)
Operating Temperature (°C )
-30~ 85
Operating Voltage
3.3V (Typ.)
Storage Temperature (°C )
-30~85
Operating Frequency
60Hz
Weight
150/165g (Typ./Max.)
Application
Industrial Control
Pixel Features
Pixel Format
640(RGB)×480, VGA
Dot Pitch
0.050×0.180 mm
Configuration
RGB Vertical Stripe
Pixel Pitch
0.180×0.180 mm [141PPI]
Mechanical Size
Display Area
115.2×86.4 mm
Outline Dimension
118.2×89.4 mm
Visual Dimension
144(H)×104.6(V)
Outline Depth
12.3/12.8(Typ.Max.) mm
Outline Features
Appearance Shape
Flat Rectangle
Orientation
Landscape mode
Aspect Ratio (H:V)
4:3
Shape Style
---
Way to Install
Rear mounting holes (4-Φ2.6)
Other Features
Surface
Basic Information
Brightness (cd/m2)
800:1 (Transmission)
TN, Normally White, Transmissive
Viewing Direction
12 o’clock
15 /10 (Typ.)(Tr/Td) (ms)
Color Performance
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K ( 6-bit )
Color Temperature
6485K
Uniformity
1.30 (Max.)(5 points)
1931 Color Gamut
NTSC Ratio
49%
sRGB
68%
Adobe RGB
51%
DCI-P3
REC.2020
37%
REmarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Back-light Features
Lamp Type
WLED
Replacement
Replaceable
Position
Edge Light type
Amount
-
Lamp Shape
Life Time
50K (Min.) hours

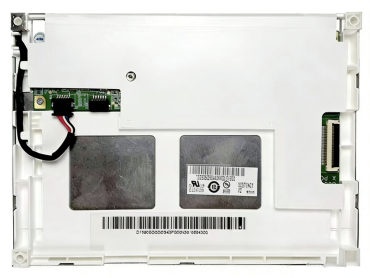

Interface Features
Connector
Interface Details
Pins
Pin Pitch
JST-Purple
SM06B-SRKS-G-TB
1 pcs
6 pins
1.0mm
Driver Electrical
with LED Driver
Current Input
0.27/0.97A (Typ./Max.)
Voltage Input
9.0/12.0/20.0V (Min./Typ./Max.)
Consumption
3.24/3.56W (Typ./Max.)
Handheld GPS surveying instruments, outdoor power inspection terminals, geological exploration data collectors, cold chain logistics trackers, etc. Extreme wide temperature range ensures reliable operation in various climates; high-brightness matte screen provides clear visibility in sunlight; small size and light weight meet the requirements of portable design.

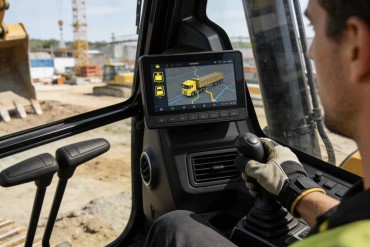

Engineering machinery (such as excavators) handheld remote control displays, forklift vehicle terminals, freight vehicle dispatch tablets, special operation vehicle (such as fire fighting and sanitation) control panels, etc. Wide temperature range and vibration-resistant design to adapt to harsh in-vehicle environments; high brightness to overcome reflections under the driver's cab glass; compact size for easy integration into confined control panels.
Field emergency vital signs monitor, mobile law enforcement recorder viewing terminal, on-site non-destructive testing equipment display unit, etc. Wide temperature range ensures rapid deployment from indoor to outdoor environments; high reliability meets equipment stability requirements in critical situations; clear outdoor display guarantees accurate reading of critical data.
Zhengzhou Hengxinda Technology Co., Ltd. has been deeply engaged in the industrial TFT LCD display industry for 13 years, committed to providing stable, reliable industrial LCD display solutions. HXD industrial LCD displays are built with industrial-grade core components, ensuring reliable performance in wide temperature ranges, strong vibration environments, and complex electromagnetic surroundings. Our products are widely used in industrial automation, intelligent equipment, outdoor devices, and other challenging applications.
In terms of customization, HXD offers customization services based on specific project requirements. These include screen size, brightness, resolution, touch technology, interface options, and mechanical mounting solutions. This allows our LCD displays to integrate with your systems.
