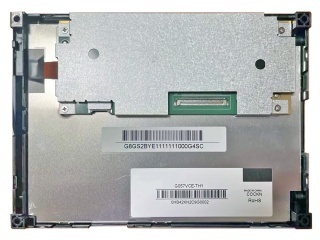

| Panel Brand | Innolux | panel model | G057VCE-TH1 |
| Panel size | 5.7-inch | panel type | a-Si TFT-LCD, LCD Module |
| resolution ratio | 640(RGB)x480, VGA,141PPI | pixel layout | RGB vertical stripes |
| display area | 115.2(W)x86.4(H) mm | Appearance size | 144(W)x104.6(H)x12.8(D) mm |
| open area | 118.2(W)x89.4(H) mm | surface treatment | Hard coating(3H) |
| display brightness | 450 cd/m² (Typ.) | contrast | 1000:1(Typ.) (transmission) |
| recommended angle of view | full-view | response time | 13/12 (Typ.) (Tr/Td) ms |
| visual Angle | 88/88/88/88 (Typ.) (CR≥10) | display mode | VA, normally black display, transmissive |
| support color | 262K , 74% DCI-P3 | light source type | WLED,50K hours with LED driver |
| weight | 151±8g | application products | industrial |
| frame frequency | 60Hz | touch technology | touchless |
| interface type | Parallel RGB(1 ch, 6-bit), Terminal | ||
| voltage supply | 3.3V (Typ.) | ||
| application environment | Operating temperature: -30 °C to 85 ° C; Storage temperature:-40 °C to 85 ° C | ||
| Brand | Model Name | Size | Resolution | Brightness | Contrast Ratio | Backlight Type | Interface | pins | Operation Temperature | Download PDF | Add Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tianma | P0570VGF1ME00 | 5.7" | 640×480 | 300 nits | 1000:1 | WLED | Parallel RGB | 40 | -20~70 ° C | ||
| Innolux | G057VCE-TH1 | 5.7" | 640×480 | 450 nits | 1000:1 | WLED | Parallel RGB | 40 | -30~85 ° C | ||
| AUO | G057VTN01.110 | 5.7" | 640×480 | 550 nits | 1000:1 | WLED | CMOS | 33 | -30 ~85 °C | ||
| AUO | G057VN01 V220 | 5.7" | 640×480 | 700 nits | 1000:1 | WLED | CMOS | 33 | -30 ~ 85 °C | ||
| AUO | G057QTN01.4 | 5.7" | 320×240 | 500 nits | 700:1 | WLED | CMOS | 33 | -30 ~85 °C | ||
| AUO | G057QAN01.1 | 5.7" | 320×240 | 800 nits | 1000:1 | WLED | CMOS | 33 | -30 ~85 °C | ||
| AUO | G057QTN01.0 | 5.7" | 320×240 | 500 nits | 700:1 | WLED | CMOS | 33 | -30 ~85 °C | ||
| Kyocera | TCG057VGLBAANN-AN00-S | 5.7" | 640×480 | 500 nits | 700:1 | WLED | TTL | -20~70℃ | |||
| Kyocera | TCG057VGLDFANN-GN02 | 5.7" | 640×480 | 600 nits | 500:1 | WLED | Parallel RGB | 33 | -20~70℃ | ||
| Kyocera | TCG057VGLGC-G50-S | 5.7" | 640×480 | 640 nits | 500:1 | WLED | Parallel RGB | 33 | -20~70℃ | ||
| Kyocera | TCG057QVLCPANN-GN00 | 5.7" | 320×240 | 350 nits | 500:1 | WLED | Parallel RGB | 33 | -20~70℃ | ||
| Kyocera | TCG057VGLCT-H50-S | 5.7" | 640×480 | 640 nits | 500:1 | WLED | Parallel RGB | 33 | -20~70℃ | ||
| Kyocera | TCG057VGLGA-G50-S | 5.7" | 640×480 | 800 nits | 500:1 | WLED | Parallel RGB | 33 | -20~70℃ |
