White LED Backlight, Mirror Surface

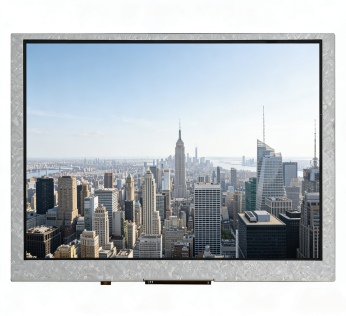

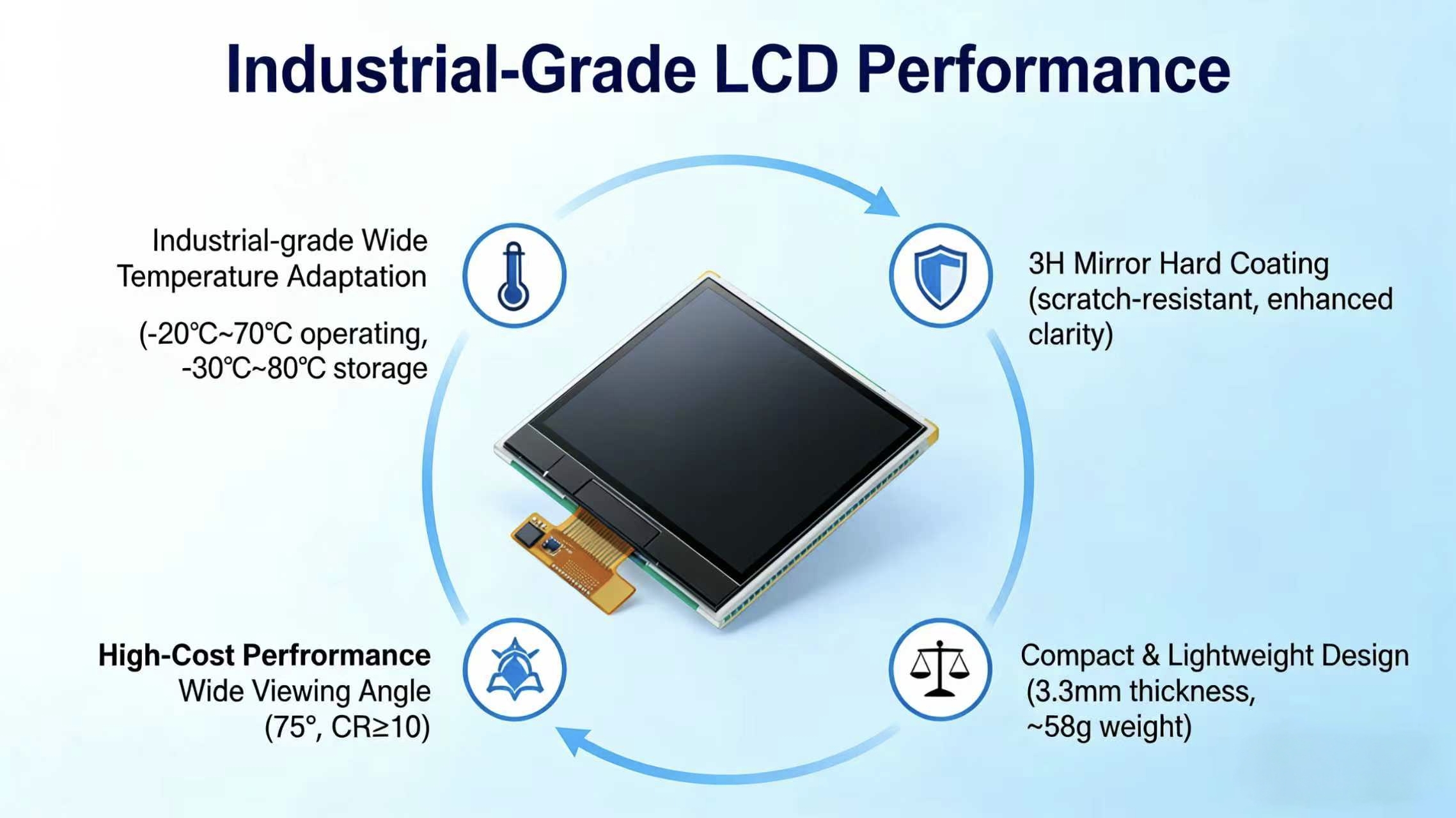

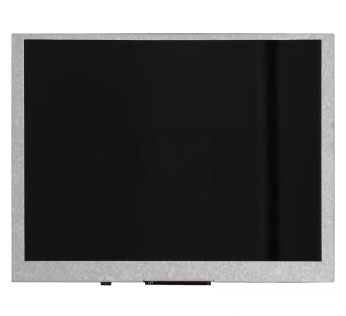

AUO G050VTN01.0 is a 5-inch TN type industrial LCD display. It is specially designed for industrial control scenarios, featuring a mirror hard coating + 33SP WLED backlight. It also has the characteristics of a 75° full viewing angle display and a wide operating temperature range of -20℃ to 70℃. It is suitable for compact spaces and complex environments of various industrial control terminals, and is a highly reliable display solution for industrial automation equipment.
Brand
AUO
Type
a-Si TFT-LCD
Model
G050VTN01.0
Surface Finish
Mirror Surface, Hard Coating (3H)
Size (inch)
5
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
120.7(W)×76.3(H)×3.3(D)
Optical Mode
TN
Active Area (WxH mm)
108(W)x64.8(H)
Backlight Type
3S3P WLED, 20K hours
Viewing Angle
75/75/65/75 (Typ.)(CR≥10)
Interface

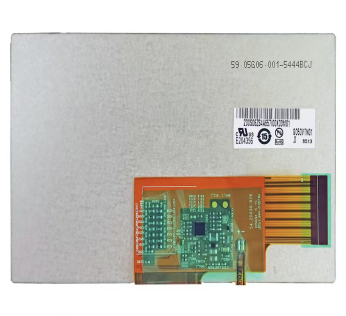

TTL (1 ch, 8-bit) , 60 pins , FPC
Resolution
800(RGB)×480,WVGA,188PPI
Response Time
20 (Typ.) (Tr+Td) ms
Brightness (cd/m²)
370
Dispay Colors
16.2M,50% NTSC
Contrast Ratio
600:1
Operating Temperature (°C )
-20~ 70
Operating Voltage
3.3V (Typ.)
Storage Temperature (°C )
-30~80
Operating Frequency
60Hz
Weight
58.0±2.0g
Application
Industrial Control
AUO G050VTN01.0 LCD TFT Panel is specially designed for industrial indusry. It can decrease the frequency of LCD screen repairs and replacements, reduce equipment downtime, ensure continuous production; it can avoid operational errors caused by viewing angle issues and lower the risk of safety accidents; it can easily adapt to different control terminals, eliminating the need to adjust equipment design based on LCD panel size, and improving the efficiency of equipment deployment.
HXD is a professional manufacturer that has been deeply involved in the LCD tft display industry for 12 years. We focuse on providing you with high-quality LCD display solutions and related services. At the core product level, we provide global high-end brands such as AUO, BOE, IVO, CHEIMEI, Innolux, and Sharp to meet the LCD display requirements in different scenarios. We also have our own independent R&D production capacity and can provide supporting accessories such as driver boards, cables, and touch screens that are compatible with LCD screens, achieving "LCD panel + accessories" one-stop supply, eliminating the complexity of multiple channel procurement for customers. With 12 years of accumulated professional technology and experience, HXD not only provides standardized products but also supports OEM & ODM customization services, precisely matching your individualized needs. The service also offers free quotations and free technical document support, providing efficient and high-quality services from demand connection, scheme design to after-sales guarantee, and is committed to becoming a trusted LCD display solution partner for you.
1. Q: Does G050VTN01.0 support touch functionality? A: The basic model does not have touch functionality. Customized resistive touch functionality can be provided (suitable for industrial glove operation). The minimum order quantity for customization is 50 pieces, and the sample production cycle is 3 days.
2. Q: The backlight lifespan of this model is 20,000 hours. Is this the continuous working duration? A: It is the continuous power-on working lifespan, which meets the usage cycle of most industrial equipment.
3. Q: Can samples be provided for the batch purchase of G050VTN01.0? A: A free sample of 1 piece can be provided. The testing period is 7 days, and testing guidance is supported.
4. Q: Can the factory provide a third-party test report for G050VTN01.0? A: Yes, ROHS environmental report, high and low temperature test report, and reliability test report are supported.
5. Q: If the device interface does not match the 60-pin FPC of the screen, is there a solution? A: We can provide customized adapter board services. We will design an adaptation plan based on the device interface requirements. The adapter board sample production cycle is 5 days, and it will be delivered synchronously with the LCD screen.
