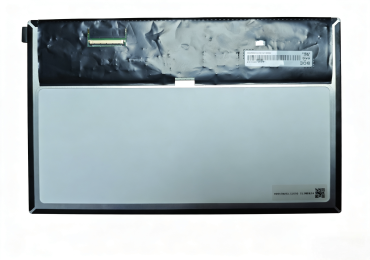

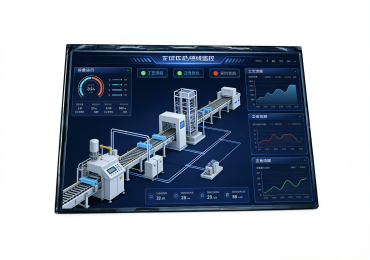

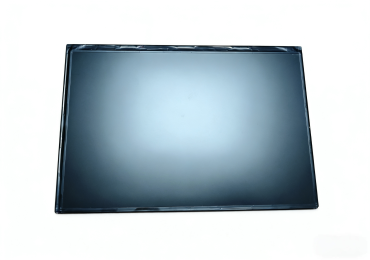

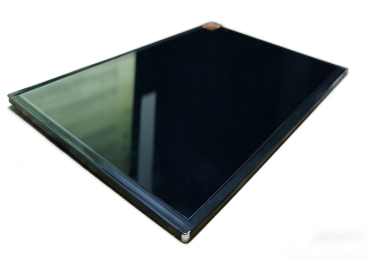

EV101WXM-N10

EV101WXM-N10

White LED backlight, including LED driver

Download PDF Send Message

Product Description

BOE EV101WXM-N10 is a 10.1-inch professional LCD panel specifically designed for industrial control and medical equipment. It features a high-definition resolution of 1280×800, a brightness of 400cd/㎡, and a high contrast ratio of 900:1. Equipped with ADS technology, it can present clear images with rich colors, meeting the needs of multiple people viewing. The EV101WXM-N10 adopts WLED backlighting , with a lifespan of up to 30,000 hours, reducing the frequency of equipment maintenance in the future. Additionally, it can work from -20℃ to 70℃, enabling it to easily handle high and low temperature conditions. Its compact size also makes equipment integration and installation more convenient.




Basic Parameters

Panel brand BOE (BOE) Panel model EV101WXM-N10
Panel size 10.1-inch Panel type a-Si TFT-LCD, LCD Module
Resolution 1280(RGB)x800,WXGA,149PPI Pixel layout RGB vertical stripes
Display area 216.96(W)x135.6(H)mm Appearance 228.6(W)x149.2(H)x6(D) mm
Brightness 400 cd/m² (Typ.) Contrast ratio 900:1 (Typ.) (TM)
Visual Angle 85/85/85/85 (Typ.) (CR≥10) Working pattern ADS, normally black display, transmissive
Viewing direction full-view Reaction time 30 (Typ.) (Tr+Td) ms
Display color 16.7M,50% NTSC Light source type WLED,30K hours with LED driver
Working frequency 60Hz Touch screen touchless
Weight 175±20g Application Industry and Healthcare
Interface LVDS(1 ch,8-bit), 40 pins, terminals
Driving voltage 3.3V (Typ.)
Work environment Working temperature: -20 ℃ ~ 70 ℃; Storage temperature: -30 ℃ ~ 70 ℃



Here is a test video of BOE EV101WXM-N10:



BOE EV101WXM-N10 Key Features

1. 1280×800 high-definition resolution + ADS technology
Parameter viewing becomes more precise, and multi-person collaboration has no blind spots.
2. 400cd/m² high brightness + 900:1 high contrast ratio
Strong light environment provides strong visibility, and scene adaptation has no restrictions.
3. WLED backlight with a lifespan of 30,000 hours
Maintenance costs are reduced, and equipment downtime losses are decreased.
4. -20℃~70℃ wide temperature operating capability
High adaptability to complex environments, and no geographical application limitations.
5. 3.3V low voltage + universal LVDS interface
Integrated installation becomes more convenient, and configuration costs are saved.



10.1-inch 400cd/m2 brightness LCD Displays Applications

1. Smart Retail: Applied in smart vending machines etc..

2. Financial Self-Service: Deployed in ATM screens etc..

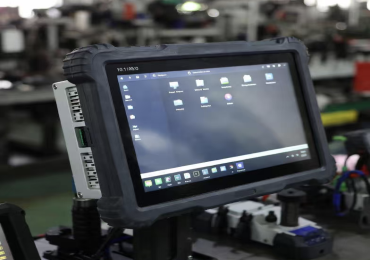

3. Industrial Automation: Used in industrial panel PCs, human-machine interfaces (HMI) etc..

4. Security & Surveillance: Used in monitoring operation terminals, face recognition panels etc..

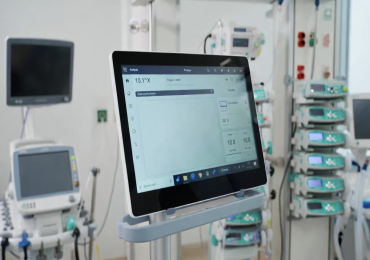

5. Medical Equipment: Suitable for portable ultrasound devices, anesthesia machines, ventilatore etc..

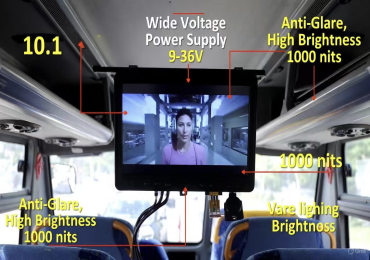

6. Vehicle& Transportation: Installed in bus screens, logistics handheld terminals, marine displays etc..





Why Choose Us?

Zhengzhou Hengxinda Technology Co., Ltd. (HXD) is a 12-year specialist focused on LCD panels, covering from research and manufacturing to distribution and support. We manage the complete process in-house and operates 1,000-square-meter production facility, which ensures reliable delivery schedules and consistent product quality.

We supply, distribute, and provide for LCD panels from leading brands including AUO, BOE, IVO, CHIMEI, Innolux, Sharp, and others. At the same time, we develop compatible driver boards and produce matching cables, delivering a complete “hardware + functionality + customization” solution.

Backed by more than a decade of expertise, we have cooperated with thousands of clients across industrial automation, healthcare, and commercial display, serving as a reliable, high-value choice for display-related projects in diverse fields.



HXD Service

1. Ultra-fast Delivery: 3-7 days for sample production.

2. After-sales Service: free technical documents and 24/7 technical support.

3. Full Process Support: free quotations based on your requirements and one-stop shopping for OEM/ODM.

4. Customized LCD Display Solution: customize brightness (peak 3000 nit), contrast, resolution, shape, size and interface etc..
