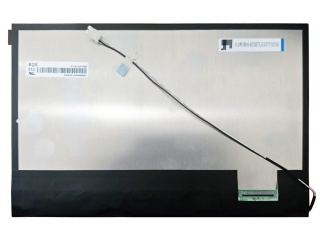

EV101WUM-N80

EV101WUM-N80

Download PDF Send Message

Basic Parameters

Panel Brand	BOE (BOE)	panel model	EV101WUM-N80
Panel size	10.1-inch	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	1920(RGB)x1200, WUXGA, 224PPI	pixel layout	RGB vertical stripes
display area	216.806(W)x135.504(H) mm	Appearance size	228.56(W)x149.06(H)x8.5(D) mm
open area		surface treatment	Hard coating
display brightness	1000 cd/m² (Typ.)	contrast	1000:1(Typ.) (transmission)
recommended angle of view	full-view	response time	30 (Typ.) (Tr+Td) ms
visual Angle	80/80/80/80 (Typ.) (CR≥10)	display mode	ADS, normally black display, transmissive
support color	16.7M,72% DCI-P3	light source type	WLED, no drive
weight	252g (Typ.)	application products	Industrial outdoor highlight
frame frequency	60Hz	touch technology	touchless
interface type	LVDS(2 ch,8-bit), Terminals
voltage supply	3.3V (Typ.)
application environment	Operating temperature: 0~50℃; Storage temperature: -20~60℃
