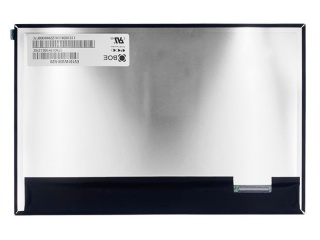

EV101WUM-N20

EV101WUM-N20

Download PDF Send Message

Basic Parameters

Panel Brand	BOE (BOE)	panel model	EV101WUM-N20
Panel size	10.1-inch	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	1920(RGB)x1200, WUXGA, 224PPI	pixel layout	RGB vertical stripes
display area	216.806(W)x135.504(H) mm	Appearance size	228.3(W)x149.05(H)x2.8(D) mm
panel brightness	470 cd/m² (Min.)	contrast	900:1(Typ.) (transmission)
visual Angle	80/80/80/80 (Typ.) (CR≥10)	work pattern	ADS, normally black display, transmissive
viewing direction	full-view	reaction time	30 (Typ.) (Tr+Td) ms
display color	16.7M,72% NTSC	Lamp Type	7S7P WLED, no drive
working frequency	60Hz	touch screen	touchless
weight		panel application	industrial engineering
signal interface	LVDS(2 ch,8-bit), 45 pins, terminals
driving voltage	3.3V (Typ.)
work environment	Operating temperature: 0~50℃; Storage temperature: -20~60℃

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
AUO	G101STN01.4	10.1"	1024×600	350 nits	500:1	WLED	LVDS	40	-20 ~70 °C
BOE	TV101WXT-LW4	10.1"	1280×800	360 nits	1500:1	WLED	LVDS	45	-20~60 °C
BOE	TV101WXU-N91	10.1"	1280×800		1000:1	No Backlight	-		-20~70 ° C
BOE	TV101WXM-NLB	10.1"	1280×800	350 nits	1000:1	WLED	MIPI	39	-20~60 ℃
BOE	TV101WUM-NH3	10.1"	1200×1920	450 nits	1000:1	WLED	MIPI	51	-10~60 ° C
BOE	TV101WUM-LZ4	10.1"	1200×1920	300 nits	900:1	WLED	MIPI	51	-10~60 ° C
BOE	TV101WXM-NA0	10.1"	1280×800	450 nits	1000:1	WLED	MIPI	40	-10~60 ° C
BOE	TV101WXT-AL0	10.1"	1280×800	350 nits	1000:1	WLED	LVDS	40	-20~60 ° C
BOE	TV101WXM-NP1	10.1"	1280×800	250 nits	800:1	WLED	eDP	30	0~50℃
