Scenery mode / Portrait mode, 1000 cd/m2 ultra-high brightness, WLED backlight, lifespan greater than 50,000 hours, including LED driver, matte surface, LC Tni105℃.

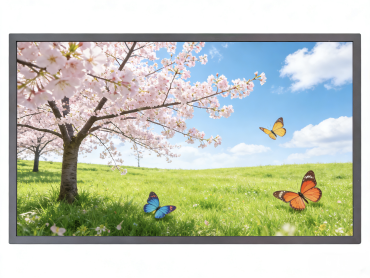

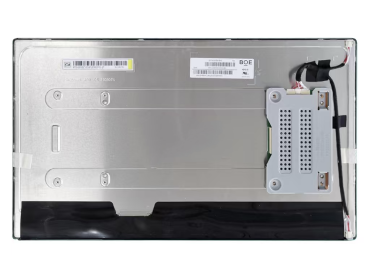

BOE DV185FHM-R00 is a 18.5-inch industrial high brightness TFT-LCD display panel. It features a 1920×1080 Full HD resolution, ensuring clear and sharp picture details, allowing for precise presentation of text, charts, and video content. And it is equipped with a high brightness of 1000 cd/m2 and a high contrast ratio of 1000:1. Even in outdoor strong light or indoor high lighting conditions, the industrial LCD panel can still display vivid and saturated colors and deep black gradations. Whether it's brand posters, product demonstrations, or monitoring screens, it can achieve professional-level color representation. For equipment manufacturers, BOE DV185FHM-R00 is a core display solution with high reliability and high cost-effectiveness. Its industrial-grade quality and long lifespan can help you create more competitive terminal devices.
Brand
BOE
Type
a-Si TFT-LCD, LCM
Model
DV185FHM-R00
Surface Finish
Matte (Haze 25%), Hard coating (3H)
Size (inch)
18.5
Pixel Layout
RGB Vertical Strip
Outline Dimension (WxHxD mm)
430.4(W)×252.2(H)×18(D)
Optical Mode
HADS,Normally black display, TM
Active Area (WxH mm)
408.96(W)×230.04(H)
Backlight Type
WLED, 30K hours, with LED driver
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Interface
LVDS (2 ch, 8-bit), Connectors, 30 pins
Resolution
1920(RGB)×1080, FHD,94PPI
Response Time
14 (Typ.) (Tr/Td) ms
Brightness (cd/m²)
1000
Display Colors
16.7M, 73%NTSC
Contrast Ratio
1000:1 (Typ.) (TM)
Operating Temperature (°C )
-20~ 60
Operating Voltage
5.0V (Typ.)
Storage Temperature (°C )
-30~70
Operating Frequency
60Hz
Weight
1.12±0.20Kgs
Application
Digital signage / Outdoor high-brightness scenarios
Basic Information
Brightness (cd/m2)
1000:1 (Transmission)
HADS, Normally Black, Transmissive
Viewing Direction
Full-view
14 (Typ.)(Tr+Td) (ms)
Color Performance
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M ( 6-bit+Hi-FRC )
Color Temperature
6485K
Uniformity
---
1931 Color Gamut
NTSC Ratio
73%
sRGB
94%
Adobe RGB
DCI-P3
76%
REC.2020
55%
REmarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Signal Electrical
Current Input
480/930mA (Typ./Max.)
Voltage Input
5.0 V (Typ.)
Consumption
2.4/4.65W (Typ./Max.)
Signal System
LVDS (2 ch, 8-bit)
Interface Features
Position
Connector
Connector Detail
Amount
Pin Pitch
Pins
UJU
IS100-L30O-C23
1pcs
1.0 mm
30 pins
Back-light Features
Lamp Type
WLED
Replacement
-
Edge Light type
Lamp Shape
Life Time
50K (Min.) hours
Interface Details
CviLux
CI0114M1HR0-NH
1 pcs
14 pins
2.0 mm
Driver Electrical
with LED Driver
12.0±1.2V
1.98/2.04A (Typ./Max.)
23.74/24.56W (Typ./Max.)
Shop assistants' screens, building advertisement machines, station information screens, etc. The 18.5-inch golden size strikes a balance between information volume and spatial adaptability. The high brightness of 1000cd/㎡ can cope with strong light environments such as those in shopping malls and stations. The high-definition picture quality makes the advertising content more attractive, enhancing brand exposure effect and information transmission efficiency.

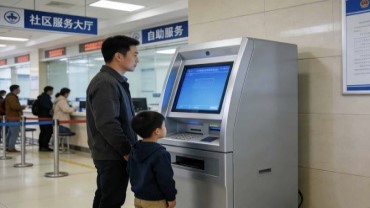

Smart Vending Machines, Bus Stop Electronic Signs, Charging Station Displays, Bank ATMs, Government Self-service Processing Machines, Hotel Self-service Check-in Terminals etc. With wide temperature range and high brightness design, they can operate stably in complex outdoor environments such as direct sunlight, rain, and snow, clearly displaying operation instructions and real-time information, thereby enhancing the all-weather service capabilities of the equipment. The matte anti-glare design avoids indoor light reflection, improving the readability of the interface during user operation; High contrast and fast response time ensure smoother touch operation feedback, enhancing the service efficiency and user experience of the terminal equipment.

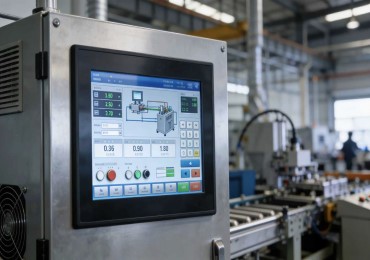

Industrial HMI human-machine interface, display screens for CNC equipment, monitoring screens for automated production lines, etc. The full-angle display meets the collaborative viewing needs of multiple workers at different stations on the production line. The wide temperature range and high reliability ensure the continuous and stable operation in industrial scenarios. The high-definition image can accurately present equipment parameters and process details, reducing the error rate of operations.
As a TFT LCD display module supplier with 13 years of expertise, Zhengzhou Hengxinda Technology Co., Ltd has provided high-quality LCD panels to thousands of customers across diverse industries. For these industrial-grade TFT LCD displays, we offer full supporting accessories: touch screens, LCD control boards, and custom cable. We also provide a one-stop shopping. With our in-depth understanding of the application needs of different industries, we can accurately meet your requirements, facilitating smooth integration while saving both time and costs. Whether you are looking for stable supply, reliable quality, or comprehensive supporting services, the cost-effective industrial LCD panel is perfect. Hengxinda is committed to advancing your industrial projects successfully with our professional services and complete supporting solutions.
1. Does DV185FHM-R00 support touch functionality? A: DV185FHM-R00 is a non-touch design. If you need touch functionality, we can provide a corresponding capacitive/resistive/infrared touch screen solution, supporting one-stop integration services. 2. Does the signal interface of DV185FHM-R00 support other interfaces? A: The standard configuration is LVDS (2 channels, 8 bits, 30 pins) interface. If you need HDMI, DP, etc. other interfaces, we can provide customized adapter board services to meet your device compatibility requirements. 3. How long is the delivery cycle for bulk orders? A: The inventory of different models varies. The delivery cycle for regular bulk orders is 3-15 working days. For details, please contact us. 4. What is the warranty period of DV185FHM-R00? A: We offer a 12-month warranty. During the warranty period, if there are quality issues that are not caused by human error, you can enjoy free repair or replacement services. 5. Can you provide customized services for LCD panel? A: Yes. We support personalized requirements such as brightness adjustment, interface customization, and special optical processing. You can submit specific requirements, and our technical team will provide a customized solution within 3 working days. 6. Do you have a matching driver board or complete machine design solution? A: Yes. We have a professional hardware R&D team that can provide a complete set of design solutions from driver boards to the overall machine structure, helping you quickly complete product development and mass production.
