Landscape/Portrait mode, white LED backlight, formal connector installation, matte surface.

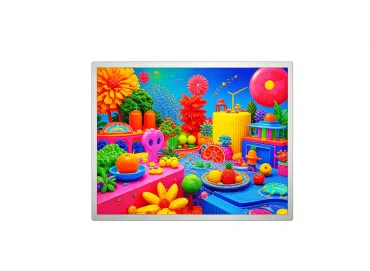

BOE DV170E0M-N30 is a classic 17.0-inch industrial grade a-Si TFT-LCD display panel. Featuring the golden 5:4 industrial aspect ratio and a standard physical resolution of 1280 × 1024 (SXGA), it uses a high-density RGB vertical stripe pixel arrangement to deliver expansive, detailed, and information-rich graphics suitable for complex industrial control interfaces. It employs an edge-lit WLED backlight system with an exceptional lifespan of up to 30,000 hours, effectively reducing long-term maintenance and replacement costs. Thanks to its superior environmental adaptability and stable display performance, DV170E0M-N30 has rapidly become a mainstay in the global industrial LCD display market. A top choice for high-standard B2B hardware integrators, DV170E0M-N30 is ideally suited for demanding applications requiring continuous 24/7 operation, such as digital signage, industrial automation HMIs, CNC machine tools, banking ATMs, and self-service kiosks.
Detailed Specifications are in the following table. You can click the "download" to get BOE DV170E0M-N30 Datasheet and Specification.
Parameter
Specification
Brand
BOE
Model
DV170E0M-N30
Size
17-inch
Resolution
1280(RGB)×1024, SXGA
Pixel Density
96 PPI
Aspect Ratio
5:4
Display Technology
HADS, Normally Black, a-Si TFT LCD
Brightness
500 cd/m²
Contrast Ratio
1000:1
Viewing Angle
89/89/89/89
Response Time
20 (Typ.)(Tr+Td) ms
Display Colors
16.7M, 72% NTSC
Color Temperature
6485K
Interface
LVDS (2 ch, 8-bit)
Connector Type
UJU ELECTRONICS, IS100-L30O-C23
Backlight Type
WLED
Backlight Life
30K hours
LED Driver
No
Touch Function
No(Custom touch upgrades upon your request)
Operating Temperature
-20 ~ 70 °C
Storage Temperature
Active Area
337.92(H) × 270.336(V) mm
Visual Area
341.72(H) × 274.14(V) mm
Outline Dimension
358.5× 296.5 × 8.7 mm (H×V×D)
Surface Treatment
Matte surface (Haze 25%), Hard Coating (3H)
Weight
1.35Kgs (Typ.)
Vibration Resistance
-
Input Voltage (Logic)
5.0V (Typ.)
Input Voltage (Backlight)
32.4/36/38.4V (Min./Typ./Max.)
Power Consumption
8.42/9.36/9.99W (Min./Typ./Max.)
Sunlight Readability
No, Indoor Use
RoHS
Yes
Hengxinda Factory specializes in manufacturing complete supporting accessories for LCD panels, covering four major product categories: touch screens, controller boards, backlight driver boards, and dedicated cables. All accessories are independently developed and manufactured in-house and are compatible with a wide range of industrial LCD panels. We provide both standard stock products and customized solutions, offering a one-stop service for LCD integration, debugging, and wiring requirements. Our products feature strong compatibility, stable quality ensured through strict factory testing, and dedicated technical support services. We support both small and large volume orders.
We supply three types of touch screens: Resistive Touch Screens, Capacitive Touch Screens, and Infrared Touch Screens, suitable for different operating environments and application requirements. All touch screens can be matched with both standard and customized LCD panels, ensuring excellent bonding performance and stable touch signal transmission. We support customization of screen size, interface, and bezel design to meet special equipment integration requirements.
Our LCD controller boards are equipped with common input interfaces such as HDMI, VGA, AV, and Type-C, while also supporting customization of special interfaces including DP and MIPI. They support both LVDS and eDP signal outputs and are compatible with LCD panels up to 4K resolution. Extensive customization options are available, including display parameters, power-on sequence settings, boot logos, and other panel configurations. The controller boards can be integrated directly with our touch screens to create an all-in-one touch display solution. We provide free compatibility testing and configuration based on the customer's LCD panel model, ensuring plug-and-play operation.
Our backlight driver boards are specifically designed for bare LCD panels without integrated backlight driver boards, providing stable power supply for LED backlight strips. Based on the specifications of the customer's LCD panel, we can precisely adjust and match the input voltage and output current to ensure optimal compatibility with different backlight power requirements.
We manufacture a complete range of LCD-related connection cables, including LCD signal cables, touch panel FPC cables, and controller board power cables. All cables are fully compatible with our controller boards, touch screens, and backlight driver boards, ensuring maximum system integration. We support customization of cable length, connector type, and pin assignments to accommodate various equipment structures.
As a supplier and manufacturer with 15 years of experience in the TFT LCD display industry, Hengxinda has always adhered to the original principle of quality. With stable product performance and professional technical strength, we had become a long-term LCD display supplier specializing in brands such as AUO, BOE, IVO, Innolux, CHEMEI, and Sharp. We can provide one-stop solutions for LCD Display Kits, and professionally offer bonding services for LCD screens and touch screens; relying on our own R&D production capabilities, we create supporting products such as LCD driver boards, touch screens, LED driver boards, and cables, meeting the diverse application needs of customers.
√ offering free quotation services to enable customers to clearly understand the cost budget.
√ supporting OEM/ODM customization services tailored to specific customer requirements.
√ providing free product technical materials to help customers quickly familiarize themselves with product applications.
Quick response, meticulous protection! Welcome to contact us!
Q1: BOE DV170E0M-N30 does not with a built-in backlight driver board; can you provide a matching one? A1: Certainly! We offer a comprehensive, one-stop solution. Based on your system's input voltage and brightness control requirements, our electronics engineers can select and supply a highly compatible, dedicated constant-current backlight driver board and a complete wiring harness, ensuring the display is ready for immediate operation upon receipt.
Q2: Our project requires HMI touch function, but the standard DV170E0M-N30 does not include a touch panel; can one be added? A2: Absolutely! We can customize and install either industrial resistive or projected capacitive (PCAP) touchscreens tailored to your specific industrial application. We offer both high-reliability optical bonding and cost-effective tape bonding processes to deliver a seamless, integrated touch-display module.
Q3: What is the current stock status of BOE DV170E0M-N30? A3: We maintain a large inventory of factory-original LCD panels. We can fully support urgent orders and ensure stable, high-volume delivery for your projects. We offer tiered price—the larger the order quantity, the greater the wholesale discount. Please contact our sales team to receive the latest bulk pricing quote.
Q4: How do you ensure safe shipping? Which international logistics methods do you support? A4: We employ multi-layer, drop-resistant packaging—using factory-standard anti-static bags, high-density shock-absorbing foam, and thickened, impact-resistant outer cartons—to ensure absolute safety during sea or air transport. We maintain long-standing partnerships with international logistics providers and support major international express services such as DHL, FedEx, and UPS.
Q5: Is there a warranty for this BOE LCD screen? A5: Every BOE DV170E0M-N30 unit we sell is guaranteed to be 100% brand-new and authentic, and comes with a full 12-month quality warranty starting from the date of manufacture.
