HXD-QHD,supports black-and-white display with excellent grayscale. Supports image upside-down rotation. Supports OSD display and control. Supports multiple languages. Supports factory mode. Meets DICOM brightness standards.
HXD-HDP,It supports automatic light sensing, Displayport V1.2, 2.7Gbps and 1.62Gbps per lane, and a 10.8Gbps bandwidth.
ACC-EDP520G,It supports automatic light sensing, rotary knob dimming, multiple language support, meets DICOM's brightness control standards, and supports GAMMA control (with 7 preset GAMMA curves)
HXD-EDP58H LCD panel driver board is a eDP controller board that supports VGA, DVI, HDMI signal input, and eDP signal output. The LCD control board supports -30℃~+70℃ wide temperature operation. Supporting resolutions up to 1920×1200. HXD-EDP58H LCD motherboard supports external power control for large screens, with ultra-low standby power consumption. Auto dimming and infrared remote […]

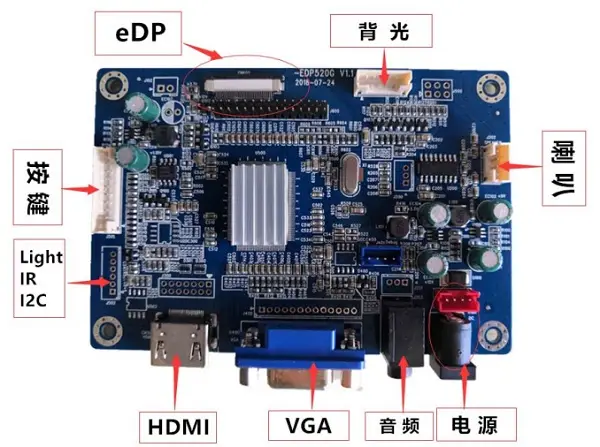

HXD-EDP520G LCD display driver board is equipped with 1 VGA, 1 HDMI input and dedicated eDP output. HXD-EDP520G LCD control board is equipped with auto ambient light sensing function and physical knob backlight dimming. It supports multi-language OSD menus, complies with DICOM luminance control standards, and features Gamma adjustment with seven factory pre-set Gamma curves. […]
HXD-VH68U LCD screen control board adopts HDMI and VGA input and LVDS output for wide compatibility. Wide temperature operation. Supports automatic light sensing, rotary knob brightness adjustment, multiple languages, DICOM-compliant brightness control, and gamma control (with 7 preset gamma curves). With maximum resolution up to 1920 x 1200, it presents sharp and clear images, perfectly […]
HXD-V56OPS LCD display driver board is a multi-interface industrial LCD driver board that supports HDMI, VGA, DVI and CVBS signal inputs, as well as LVDS signal outputs. 5V and 12V dual power supply, supports low-power standby mode. The LCD control board supports true-color boot screens and allows customized exclusive boot logos for customers. HXD-V56OPS LCD […]
HXD-VDH68 LCD panel driver board is designed for small and medium-sized LCD display panels and supports multiple resolutions up to 1920×1200. HXD-VDH68 LCD control board provides flexible signal conversion from HDMI, VGA and DVI interface to output options including LVDS and eDP. Supports auto dimming, black-and-white display, OSD display & control, multi-language switching and factory […]

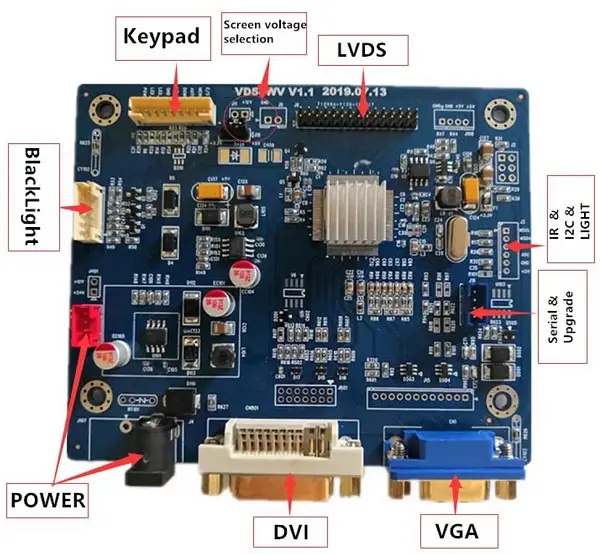

HXD-VD58WV LCD driver board is a versatile industrial-grade 30 pin LCD controller board designed to convert VGA and DVI signals to LVDS outputs. Supporting resolutions up to 1920×1200, it is ideal for a wide range of TFT LCD display applications. HXD-VD58WV LCD control board can support auto dimming, potentionmeter knob dimming, multiple language support, meets […]

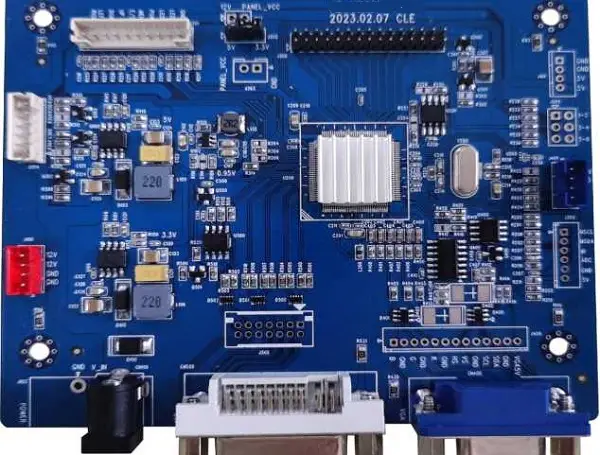

HXD-VD68DG LCD motherboard is a reliable and versatile solution for converting VGA and DVI signals into LVDS output. HXD-VD68DG LCD control board HXD-VD68DG can operate stably at temperatures as low as -40℃. Supporting resolutions up to 1920×1200. It features enhanced anti-static protection and an isolated power supply. HXD-VD68DG LCD driver board is suitable for medical […]
HXD-VD68 LCD panel driver board supports VGA and DVI signal input, and LVDS signal output. HXD-VD68 LCD control board can operate stably within a wide temperature range of -20℃ to +60℃. Supporting resolutions up to 1920×1200. This LCD driver board supports automatic light sensing, black-and-white display, OSD display and control, multi-language options, and factory mode. […]

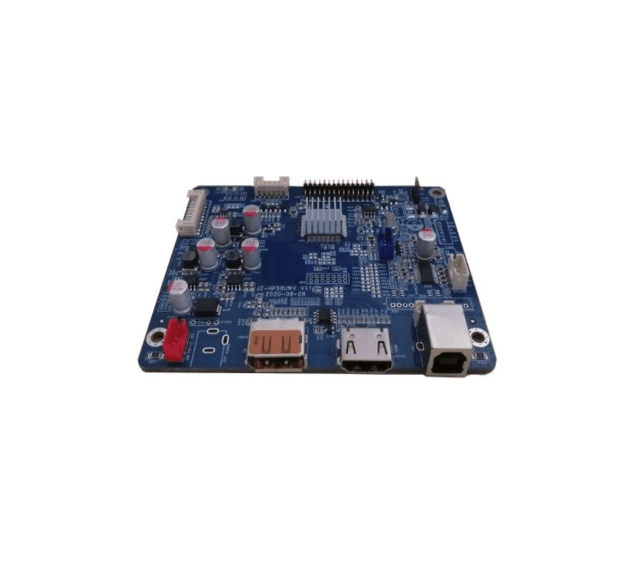

HXD-HP58UWV is mainly used to support TFT LCD screens. The mainboard adopts the Mstar signal processing chip, which has powerful processing capabilities and can support various standard and non-standard signals of different specifications. Using high-quality components, it has excellent performance.
HXD-V1680 is mainly used to support TFT LCD screens. The mainboard adopts the MTK signal processing chip, which has powerful processing capabilities and can support various standard and non-standard signals of different specifications. Using high-quality components, it has excellent performance.

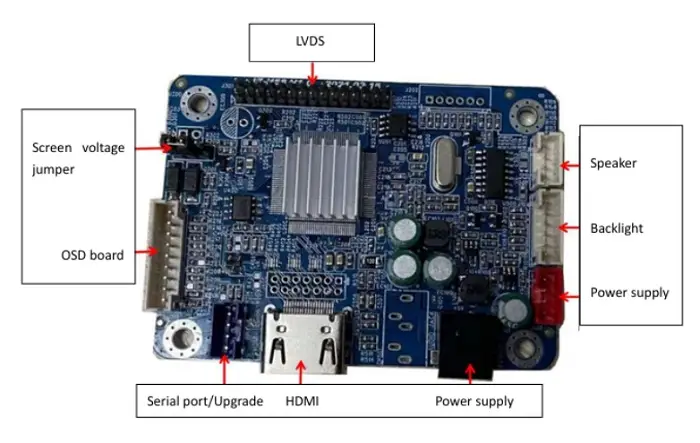

HXD-H58 LCD control board offers stable performance and a wide range of features, enabling the conversion of HDMI signal for output as LVDS signal. This LCD driver board supports resolutions up to 1920×1080 (FHD). -20℃~+70℃ wide temperature operation. HXD-H58 screen motherboard supports ADJ/PWM software dimming, making it ideal for industrial displays, embedded devices and custom […]
Operating temperature range-20 to 65℃.Optional to add automatic light sensitive control.It supports resolutions up to 1920 x 1200. Can receive remote control function.The basic resolution is supported to 85Hz (if the LCD screen used can work at 85Hz). The amplifier supports up to 2X2W.Support serial port protocol control.
HXD-VDH58L is mainly used to support TFT LCD screens. The mainboard adopts the Mstar signal processing chip, which has powerful processing capabilities and can support various standard and non-standard signals of different specifications. Using high-quality components, it has excellent performance.
• input voltage : 10V ~ 16V • incoming current : 0.6A • surge current : 1.5A • backlight panel adjustment voltage : 0-5V • storage humidity : 10-90%RH • operational humidity : 10- 90 %RH • operating temperature : 10 90 %RH • storage temperature : -40 70 ℃
