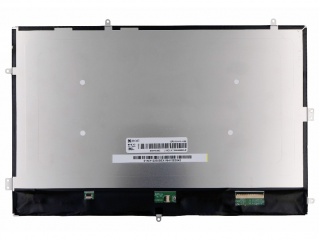

BP101WX1-400

BP101WX1-400

Download PDF Send Message

Basic Parameters

Panel Brand	BOE (BOE)	panel model	BP101WX1-400
Panel size	10.1-inch	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	1280(RGB)x800,WXGA,149PPI	pixel layout	RGB vertical stripes
display area	216.96(W)x135.6(H)mm	Appearance size	229.46(W)x149.15(H)x4.5(D) mm
Opening size		surface treatment	matte finish, antireflective finish
panel brightness	350 cd/m² (Typ.)	contrast	800:1(Typ.) (TM)
visual Angle	80/80/80/80(Typ.) (CR≥10)	work pattern	ADS, normally black display, transmissive
viewing direction	full-view	reaction time	30 (Typ.) (Tr+Td)
display color	16.7M,50% NTSC	light source type	WLED,12K hours with LED driver
working frequency	60Hz	touch screen	touchless
Panel Weight	164.5/167g (Typ./ Max.)	panel application	tablet PC (tablet personal computer)
signal interface	MIPI(4 data lanes), 40 pins, terminals
driving voltage	3.7V (Typ.)
work environment	Working temperature: -20 °C to 60 ° C; Storage temperature: -30 °C to 70 ° C
