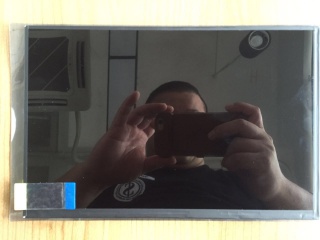

BP101WX1-300

BP101WX1-300

Download PDF Send Message

Basic Parameters

Panel Brand	BOE (BOE)	panel model	BP101WX1-300
Panel size	10.1-inch	panel type	a-SiTFT-LCD, LCD Module
resolution ratio	1280(RGB)x800,WXGA,149PPI	pixel layout	RGB vertical stripes
display area	216.96(W)x135.6(H) mm	Appearance size	228.21(W)x148.86(H)x4.59(D) mm
Opening size		surface treatment	Hard coating(3H), Antireflective treatment
panel brightness	450 cd/m² (Typ.)	contrast	900:1 (Typ.) (TM)
visual Angle	89/89/89/89 (Typ.) (CR≥10)	work pattern	ADS, normally black display, transmissive
viewing direction	full-view	reaction time	25 (Typ.) (Tr+Td)
display color	16.7M,53% NTSC	light source type	10S4P WLED,15K hours, without driver
working frequency	60Hz	touch screen	touchless
Panel Weight	145g (Max.)	panel application	tablet PC (tablet personal computer)
signal interface	LVDS(1 ch,8-bit), 45 pins, terminals
driving voltage	3.3V (Typ.)
work environment	Operation: -20 °C to 65 ° C; Storage: -40 °C to 85 ° C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
AUO	G101STN01.4	10.1"	1024×600	350 nits	500:1	WLED	LVDS	40	-20 ~70 °C
BOE	TV101WXM-NLB	10.1"	1280×800	350 nits	1000:1	WLED	MIPI	39	-20~60 ℃
BOE	TV101WXU-N91	10.1"	1280×800		1000:1	No Backlight	-		-20~70 ° C
BOE	TV101WXT-LW4	10.1"	1280×800	360 nits	1500:1	WLED	LVDS	45	-20~60 °C
BOE	TV101WXM-NA0	10.1"	1280×800	450 nits	1000:1	WLED	MIPI	40	-10~60 ° C
BOE	TV101WXT-AL0	10.1"	1280×800	350 nits	1000:1	WLED	LVDS	40	-20~60 ° C
BOE	TV101WUM-NS1	10.1"	1200×1920	450 nits	900:1	WLED	MIPI	34	-20~65 ° C
BOE	TV101WUM-NM0	10.1"	1200×1920	410 nits	900:1	WLED	MIPI	51	-10~60 ° C
BOE	TV101WXM-NP1	10.1"	1280×800	250 nits	800:1	WLED	eDP	30	0~50℃
BOE	QV101WUB-N90	10.1"	1200×1920		900:1	No Backlight	eDP	30	-20~70 ° C
BOE	TV101WUM-AD0	10.1"	1200×1920	400 nits	800:1	WLED	MIPI	34	-20~65℃
