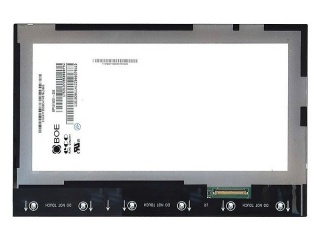

BP101WX1-206

BP101WX1-206

Download PDF Send Message

Basic Parameters

Panel Brand	BOE (BOE)	panel model	BP101WX1-206
Panel size	10.1-inch	panel type	a-Si TFT-LCD, LCD Module
resolution ratio	1280(RGB)x800, WXGA,149PPI	pixel layout	RGB vertical stripes
display area	216.96(W)x135.6(H) mm	Appearance size	228.6(W)x149.2(H)x4.59(D) mm
visible size	220.46(H)x139.25(V) mm	surface treatment	Mirror (Haze 0%),Hard coating(3H), anti-reflective treatment
display brightness	330 cd/m² (Typ.)	contrast	600:1(Min.) (transmission)
viewing direction	full-view	response time	25 (Typ.) (Tr+Td) ms
visual Angle	80/80/80/80 (Typ.) (CR≥10)	operator schema	ADS, normally black display, transmissive
support color	16.7M,50% NTSC	light source type	WLED,15K hours with LED driver
weight	150g (Max.)	be the same with	tablet PC (tablet personal computer)
frame frequency	60Hz	touch panel	touchless
interface type	LVDS(1 ch,8-bit), Terminals
voltage supply	3.3V (Typ.)
application environment	Operating temperature:0~50℃; Storage temperature: -20~60℃

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
AUO	G101STN01.4	10.1"	1024×600	350 nits	500:1	WLED	LVDS	40	-20 ~70 °C
BOE	TV101WXT-LW4	10.1"	1280×800	360 nits	1500:1	WLED	LVDS	45	-20~60 °C
BOE	TV101WXU-N91	10.1"	1280×800		1000:1	No Backlight	-		-20~70 ° C
BOE	TV101WXM-NLB	10.1"	1280×800	350 nits	1000:1	WLED	MIPI	39	-20~60 ℃
BOE	TV101WUM-NH3	10.1"	1200×1920	450 nits	1000:1	WLED	MIPI	51	-10~60 ° C
BOE	TV101WXM-NA0	10.1"	1280×800	450 nits	1000:1	WLED	MIPI	40	-10~60 ° C
BOE	TV101WUM-LZ4	10.1"	1200×1920	300 nits	900:1	WLED	MIPI	51	-10~60 ° C
BOE	TV101WUM-NS1	10.1"	1200×1920	450 nits	900:1	WLED	MIPI	34	-20~65 ° C
BOE	TV101WXT-AL0	10.1"	1280×800	350 nits	1000:1	WLED	LVDS	40	-20~60 ° C
