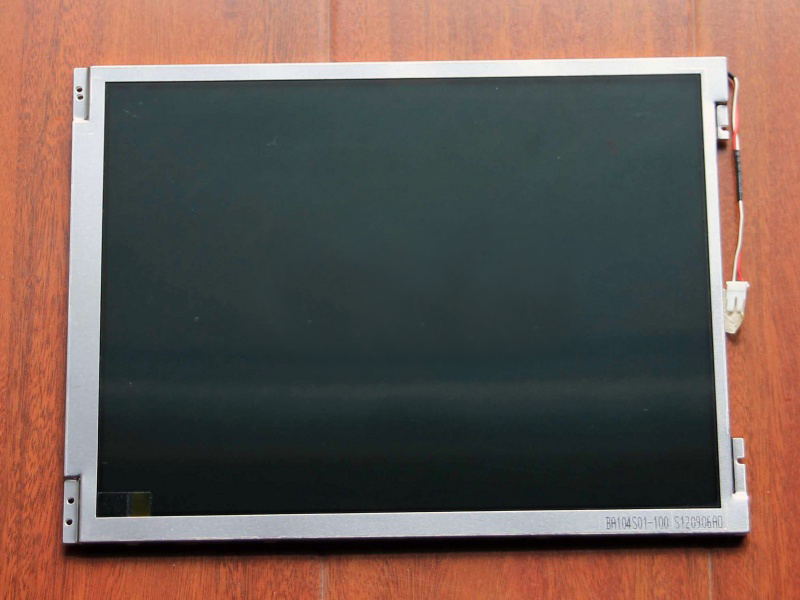

BA104S01-100

BA104S01-100

Download PDF Send Message

Basic Parameters

Panel Brand	BOE (BOE)	panel model	BA104S01-100
Panel size	10.4-inch	panel type	a-Si TFT-LCD,LCD Module
resolution ratio	800(RGB)×600, SVGA, 96PPI	pixel layout	RGB vertical stripes
display area	211.2(W)×158.4(H) mm	Appearance size	236(W)×176.9(H)×5.9(D) mm
Brightness(cd/m²)	500 (Typ.)	the contrast	800 : 1 (Typ.) [Transmission]
visual Angle	70/70/60/70 (Typ.) (CR≥10)	surface treatment	Clear
number of colors	262K/16.7M , 50% NTSC	optical mode	TN, normally white display, transmissive
Panel Weight	288g (Typ.)	response time	30 (Typ.) (Tr+Td) ms
frame frequency	60Hz	backlight system	6S6P WLED , 50K hours, no drive
signal interface	LVDS (1 ch, 6/8-bit) ,Terminals, 20pins	be the same with	Healthcare Industry
supply voltage	3.3V (Typ.)	touch panel	touchless
application environment	Operating temperature: -20 ~70 °C ; Storage temperature: -30 ~80 °C

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
BOE	ET104S0M-N15	10.4"	800×600	350 nits	800:1	WLED	LVDS	20	-20~70℃
BOE	GV104X0M-N10	10.4"	1024×768	450 nits	1100:1	WLED	LVDS	30	-30~85 ° C
BOE	BA104S01-300	10.4"	800×600	350 nits	800:1	WLED	LVDS	20	-20~70 °C
BOE	BA104S01-200	10.4"	800×600	300 nits	800:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040SVF1ME00	10.4"	800×600	400 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040VGF1MA00	10.4"	640×480	900 nits	1000:1	WLED	CMOS	40	-30~80 ° C
Tianma	P1040XGF1MB01	10.4"	1024×768	500 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040XGF1MA00	10.4"	1024×768	1300 nits	1000:1	WLED	LVDS	20	-30~80 ° C
Tianma	P1040SVN1ME10	10.4"	800×600	350 nits	500:1	WLED	TTL	60	-20~70 ° C
Tianma	P1040SVF1MB00	10.4"	800×600	400 nits	1200:1	WLED	LVDS	20	-20~70 ° C
Tianma	P1040VGF1MB00	10.4"	640×480	450 nits	1000:1	WLED	Parallel RGB	40	-30~80 ° C
