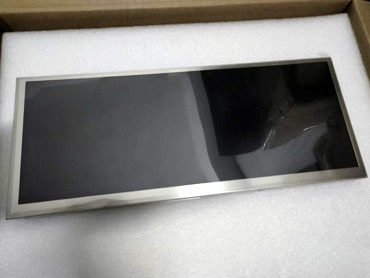

AV123Z7M-N17-58P0

AV123Z7M-N17-58P0

Download PDF Send Message

Basic Parameters

Panel Brand	BOE	Panel Model	AV123Z7M-N17-58P0
Panel Size	12.3 inches	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)x720, 8:3	Pixel Layout	RGB vertical stripe
Active Area	292.032(W)x109.512(H)mm	Outline Dimension	308(W)x127(H)mm
Viewable Area	294.032(W)x111.52(H)mm	Surface Treatment	Matte
Brightness	1000 cd/m²(Typ.)	Contrast Ratio	1100:1(Typ.)(TM)
Viewing Angle	88/88/88/88(Typ.)(CR≥10)	Optical Mode	ADS, normally black display, transmissive
Viewing Direction	Full-view	Response Time	30 (Typ.)(Tr+Td) ms
Display Colors	16.7M, 72% NTSC	Backlight Type	9S4P WLED, without LED driver
Operating Rate	60Hz	Touch Function	No
Panel Weight	---	Application	In-Vehicle Display Panel
Interface	LVDS(2 ch,8-bit),60 pins,connector
Operating Voltage	3.5/18/-12.0V (Max.)(VCC/VGH/VGL)
Operating Environment	Operating:-30~85℃;Storage:-40~90℃

Related Products

Brand	Model Name	Size	Resolution	Brightness	Contrast Ratio	Backlight Type	Interface	pins	Operation Temperature	Download PDF	Add Inquiry
IVO	V123AWF3 R1	12.3"	1920×720	1000 nits	1200:1	WLED	LVDS	50	-30~85℃
IVO	M123AWF2 R1	12.3"	1920×720	1000 nits	1000:1	WLED	LVDS	50	-30~85℃
IVO	M123AWA2 R1	12.3"	1920×720	1000 nits	1000:1	WLED	LVDS	50	-30~85℃
IVO	M123AWA1 R0	12.3"	1920×720	800 nits	900:1	WLED	LVDS	40	-40~85℃
IVO	M123AWF4 R1	12.3"	1920×720	1000 nits	1000:1	WLED	LVDS	50	-30~85℃
IVO	M123AWF4 R0	12.3"	1920×720	940 nits	1000:1	WLED	LVDS	50	-30~85℃
