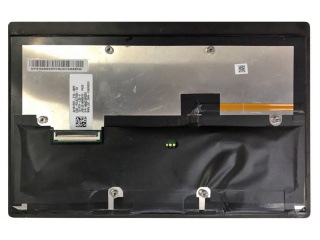

AV101FHT-T10-28P0

AV101FHT-T10-28P0

Download PDF Send Message

Basic Parameters

Panel Brand	BOE (BOE)	panel model	AV101FHT-T10-28P0
Panel size	10.1-inch	panel type	a-Si TFT-LCD, Screen Assembly
resolution ratio	1920(RGB)x1080, FHD, 218PPI	pixel layout	RGB vertical stripes
display area	223.488(W)x125.712(H) mm	Appearance size	244.85(W)x159.25(H) mm
visible size		surface treatment	Haze 10%,Hard coating(3H), Reflectivity 2.2%
Brightness (cd/m²)	700 (Typ.)	(contrast) ratio	1000:1(Typ.) [Transmission]
best angle	full-view	optical mode	ADS, normally black display, transmissive
visual Angle	85/85/85/85 (Typ.) (CR≥10)	response speed	30 (Typ.) (Tr+Td) ms
number of colors	16.7M,70% NTSC	Backlight type	10S3P WLED,30K hours, no drive
Screen Weight	380±38g	be the same with	Outdoor high-brightness car display
refresh rate	60Hz	touch function	Projected capacitive touch screen,I²C
signaling system	LVDS(2 ch,8-bit), Terminals, 60 pins
supply voltage	3.3V (Typ.)
maximum rated	Storage temperature: -40~90 °C Working temperature: -30~85 °C
