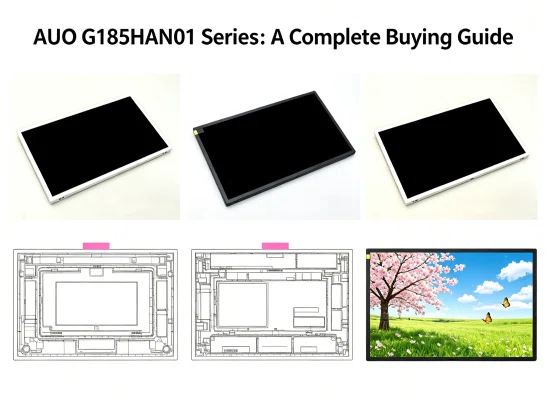

G185HAN01 series is a dedicated 18.5-inch industrial TFT LCD panel module developed by AUO, a global leader in industrial display technology. All models in the series feature a 16:9 aspect ratio and 1920×1080 high resolution, ensuring clear and detailed image display. The key advantage of AUO G185HAN01 series is flexible configuration, from brightness, interface to operating temperature range, which can be customized according to different environment and equipment requirements. As an industrial grade LCD panel, G185HAN01 series undergoes rigorous environmental test, with vibration resistance up to 1.5G (14.7 m/s²) and RoHS certification, ensuring long-term stable operation in different industrial environments. Whether it’s a general indoor workshop or an extreme outdoor environment, there’s a model in AUO G185HAN01 series to meet your needs.
Each feature of AUO G185HAN01 series is designed to solve practical pain points in industrial applications. Let’s analysize the key advantages and their practical values.
All models in AUO G185HAN01 series adopt AHVA display technology, with viewing angles of 89° from all four directions (left, right, up, down), which is equivalent to 178° full viewing angle. This means the LCD display remains color-accurate and free of whitening no matter which angle operators view it from.
The AHVA normally black displayalso delivers pure black levels and strong image layering, ensuring that dark details and light-colored text are clearly visible, avoiding misjudgments caused by color distortion in industrial monitoring and parameter display.
With 1920×1080 full HD resolution and 119 PPI pixel density, the AUO G185HAN01 series can display more parameters, charts, text, and operation interfaces simultaneously without blurriness. It is fully suitable for scenarios that require detailed visual display, such as visual inspection and complex man-machine interaction interfaces.
AUO G185HAN01 series offers three brightness options to adapt to different lighting environments:
- 350 cd/m²: Suitable for indoor workshops with moderate lighting, meeting basic industrial display needs.
- 500 cd/m²: Indoor high-brightness design, ensuring clear visibility even under direct factory lighting or near windows.
- 1800 cd/m²: Ultra-high brightness, specifically designed for outdoor environments (such as outdoor charging piles and engineering machinery cabs), solving the problem of unreadable displays due to glare.
All models have a 1000:1 high contrast ratio, which enhances the distinction between light and dark areas, making subtle data changes clearly distinguishable.
AUO G185HAN01 series provides two interface options to meet the compatibility needs of new and old industrial equipment:
- LVDS (2 ch, 8-bit, 30 pins): Compatible with older industrial motherboards, with mature technology and stable signal transmission, suitable for upgrading and replacing old equipment.
- eDP (2 Lanes, 30 pins): A new-generation interface with simpler wiring, lower power consumption, and stronger anti-interference ability. It is suitable for new embedded industrial motherboards and compact industrial equipment, reducing assembly complexity and equipment volume.
All models are equipped with an integrated LED driver, which simplifies the overall structure of the equipment, reduces failure rates, and enhances shock resistance.
The WLED backlight has a service life of up to 50,000 hours. It can operate stably for more years, greatly reducing maintenance costs and downtime caused by backlight failure in long-term 24/7 industrial operations.
The surface of all models in the series is treated with an anti-glare matte finish and 3H hardness, which reduces reflections and resists scratches, adapting to the harsh operating environment of industrial workshops. The operating temperature range varies by model, with options of -20~70℃ and -30~80℃, ensuring stable operation in extreme low-temperature or high-temperature environments.
To help you quickly select the appropriate model, we’ve sorted out the core parameters of the mainstream models in AUO G185HAN01 series.
Model
G185HAN01.0
G185HAN01.004
G185HAN01.100
G185HAN01.102
G185HAN01.104
G185HAN01.3
G185HAN01.4

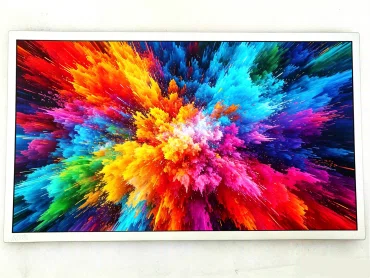

Picture for Reference
Production State
In Production
Out of Production
Brand
AU Optronics
Size
18.5-inch
Resolution
1920×1080 FHD, 16:9
Pixel Layout
RGB Vertical Strips
Active Area
408.96×230.04 mm
Outline Dimension
430.4×254.6×12.5 mm
429.3×253.06×11.83 mm
Weight
1.20 Kgs
1.75 Kgs
1.60 Kgs
Matte Surface
Matte，Hard coating (3H)
Matte，Hard coating (3H), Anti-reflective Coating
Brightness
350 cd/m²
500 cd/m²
1800 cd/m²
Contrast Ratio
1000:1
Viewing Angle
89/89/89/89°
Response Time
10/10 ms (Tr/Td)
Display Colors
16.7M, 99% sRGB
16.7M, 97% sRGB
16.7M, 72% NTSC
Operating Temperature
AHVA, Normally Black Display, Transmissive
Refresh Rate
60Hz
Touch Function
No (Custom touch upgrades upon your request)
Power Consumption
16.5W (Typ.)
20.95W (Max.)
28.54W (Max.)
28.15W (Max.)
21.2W (Max.)
47.4W (Typ.)
Backlight
9S7P WLED, 50K hours
8S7P WLED, 50K hours
WLED, 50K hours
9S7P×2CN WLED, 50K hours
LED Driver
Yes
Interface
LVDS (2 ch, 8-bit), 30 pins
eDP (2 Lanes), 30 pins
Drive voltage
5.0V (Typ.)
3.3V (Typ.)
-20 ~ 70 °C
-30 ~ 80 °C
-30 ~ 70 °C
Storage Temperature
-25 ~ 70 °C
AUO G185HAN01 series is widely used in various industrial and commercial fields.
a. Industrial Automation
This is the core application field of AUO G185HAN01 series. It is widely used in industrial control all-in-ones, HMI interfaces, CNC machine operation panels, robot teach pendants, and production line data dashboards. For example, AUO G185HAN01.104 with wide temperature and 500 nits brightness is ideal for high-temperature injection molding workshops and cold storage monitoring terminals, while AUO G185HAN01.3 with eDP interface is suitable for new-generation compact industrial control equipment.
b. Medical Equipment
With high color accuracy and stable display performance, AUO G185HAN01 series is suitable for medical monitors, ultrasonic diagnostic equipment, and rehabilitation equipment operation panels. The 99% sRGB color gamut of models like G185HAN01.0 ensures accurate display of medical images, helping medical staff make correct judgments.
c. Transportation & Automotive
In the transportation field, the series is used in bus/taxi on-board monitoring screens, truck navigation terminals, subway station guide screens, and engineering machinery cab displays. The G185HAN01.4 with ultra-high brightness and wide temperature is particularly suitable for outdoor engineering machinery, ensuring clear visibility even in direct sunlight.
d. Commercial Retail & Self-Service
You can often see AUO G185HAN01 series in daily life: bank ATMs, government self-service handling machines, supermarket self-checkout machines, self-ordering screens, and elevator advertising machines. The 500 nits brightness and anti-glare surface ensure clear display even in crowded and bright commercial environments.
e. Security & Energy
In the security field, G185HAN01 series is used in NVR/DVR monitoring hosts, face recognition access control, and fire control terminal displays; in the energy field, it is applied to charging pile control screens, photovoltaic inverter monitoring terminals, and power substation parameter display screens. The long service life and high stability of AUO G185HAN01 series reduce the maintenance cost of equipment in these 24/7 operation scenarios.
To avoid choosing the wrong model, here are 4 simple selection principles based on actual needs:
♦ Light environment: Choose 350 cd/m² for ordinary indoor; 500 cd/m² for strong indoor light or semi-outdoor; 1800 cd/m² for outdoor or direct sunlight.
♦ Equipment interface: If using an old industrial motherboard, choose LVDS interface models (G185HAN0 / G185HAN01.004 / G185HAN01.104); if using a new embedded motherboard, choose eDP interface models (G185HAN01.3 / G185HAN01.4).
♦ Operating temperature: If the equipment is used in cold storage, high-temperature workshops, or outdoor environments, choose wide-temperature models (-30~80℃: G185HAN004 / G185HAN01.104 / G185HAN01.4).
♦ Color accuracy requirements: For medical imaging, high-precision monitoring, choose models with 99% sRGB (G185HAN01.0 / G185HAN01.004); for general industrial scenarios, 72% NTSC models are sufficient.
Q1: Do all models support touch functionality?
A1: No, none of the models in the G185HAN01 series support touch functionality. However, we can provide custom capacitive, resistive, or infrared touch screens based on your requirements.
Q2: Can AUO G185HAN01.4 model be used as a direct replacement for other 18.5-inch LCD screens?
A2: Not necessarily. You must first confirm the resolution (must be 1920×1080), interface (eDP, not LVDS), display area dimensions (408.96×230.04 mm), and brightness level. Blindly replacing the LCD display may result in issues such as failure to power on or structural incompatibility.
Q3: What is the actual service life of the backlight?
A3: The rated 50,000 hours represents the minimum service life. Under normal industrial operating conditions, it can provide stable operation for many years, with brightness decay not exceeding 30% during that period.
Q4: Are all models in stock? What is the MOQ?
A4: All mainstream models (G185HAN01.0 / G185HAN01.004 / G185HAN01.104 / G185HAN01.3 / G185HAN01.4 ) are in stock. The minimum order quantity for samples is 1 unit, and bulk orders qualify for more favorable price.
Q5: Are you a manufacturer?
A5: We are a distributor specializing in industrial LCD panels from leading global LCD panel manufacturers such as AUO, BOE, Chemei Innolux, IVO, Sharp, Tianma, and Kyocera. However, we do have our own factories for LCD panel accessories such as touch screens, driver boards, and cables.
AUO G185HAN01 series stands out in the 18.5-inch industrial LCD panel market thanks to its flexible configurations, reliable quality, and wide range of applications. It addresses key pain points faced by industrial users, such as poor visibility in bright light, limited viewing angles, complex wiring, short service life, and poor environmental adaptability.
Whether you are upgrading legacy equipment or developing new industrial products, the G185HAN01 series offers a suitable model for your needs. We provide original AUO LCD panels, free technical support, sample testing, and a 1-year warranty. If you have any questions regarding model selection, customization, or price, please feel free to contact us at any time—we are here to provide you with a one-stop industrial LCD display solution.
