Wide temperature range, white LED backlight, up/down and left/right display flip, 6/8-bit grayscale optional, matte surface.

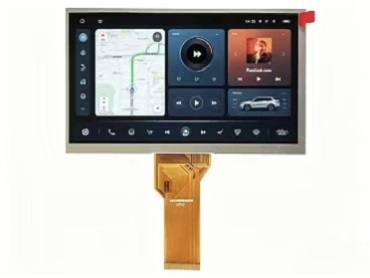

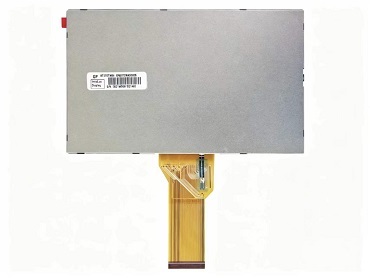

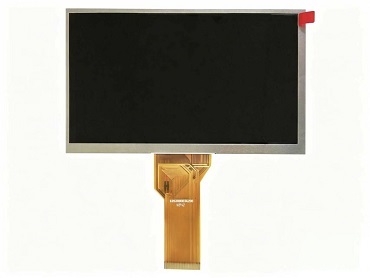

Innolux AT070TN94 is a 7-inch hot car LCD display module that adopts a-Si TFT LCD technology. It is equipped with WLED backlight but without LED backlight driver board and touch function. In terms of backlight, Innolux AT070TN94 uses a side 3S9P WLED light source, and the backlight service life is 20,000 hours. AT070TN94 adopts a Parallel RGB (1 ch, 6/8-bit) signal interface with a total of 50 pins, connected via FPC. Innolux AT070TN94 operates within a temperature range of -30 to 85°C, with a storage temperature range of -30 to 85°C, and offers vibration resistance of 1.5G (14.7 m/s²). Featuring wide temperature tolerance and high stability, Innolux AT070TN94 is an automotive LCD display perfect for car display monitors.
Key Product Specifications:
• Brand: Innolux
• Size: 7-inch
• Active Area: 154.08(W)x85.92(H)mm
• Outline Dimension: 164.9(W)x100(H)x6(D)mm
• Backlight Type: 3S9P WLED, 20K hours, without LED driver
• Resolution: 800(RGB)x480,WVGA,134PPI
• Contrast Ratio: 500:1(Typ.)(TM)
• Interface:Parallel RGB(1 channel, 6/8-bit), 50 pins, FPC
• Operating Temperature: -30~85℃
Product Features:
• Wide Temperature Operation: Industrial-grade Performance for Automotive Use
• Multiple Standard Driving Voltages: High Compatibility with Mainstream Solutions
• Automotive-grade Vibration Resistance & Reliability: Optimized for In-vehicle Applications
Suggested Applications for Innolux AT070TN94:
• Automotive Equipment: Innolux AT070TN94 is an industrial-grade LCD display featuring excellent wide-temperature operation, outstanding vibration and shock resistance, as well as stable and clear imaging performance. With high reliability, stability and wide viewing angles, AT070TN94 is widely used in various automotive LCD display applications, making it an ideal choice for central control screens, car display monitors, rear-seat entertainment systems, automotive industrial control terminals and other scenarios.
• Industrial Equipment: The industrial-grade stability of Innolux AT070TN94 makes it widely adopted in industrial control equipment applications, delivering stable and clear display performance for industrial HMI display panels, data display equipment, and factory automation systems. With its wide-temperature operation and excellent anti-vibration capability, AT070TN94 can adapt to industrial environments including extreme temperatures, dust, and vibration, ensuring long-term reliable operation in industrial settings.
• Medical Equipment: Innolux AT070TN94 is also widely used in the medical equipment applications. It features stable display, reliable performance, and quiet operation. Innolux AT070TN94 is suitable for medical monitors, portable diagnostic devices, medical testing instruments, small medical control terminals, and human-machine interfaces of various medical equipment, providing clear and dependable display support for medical staff.
✅️In stock & ready to ship. Best price available. Request a quote now!
The basic parameters of Innolux AT070TN94 are in the following table:
| Panel Brand | Innolux | Panel Model | AT070TN94 |
| Panel Size | 7.0 inches | Panel Type | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)x480,WVGA,134PPI | Pixel Layout | RGB vertical stripe |
| Active Area | 154.08(W)x85.92(H)mm | Outline Dimension | 164.9(W)x100(H)x6(D)mm |
| Viewable Area | 156.7(W)x89.1(H)mm | Surface Treatment | Matte |
| Brightness | 400 cd/m²(Typ.) | Contrast Ratio | 500:1(Typ.)(TM) |
| Viewing Angle | 70/70/50/70(Typ.)(CR≥10) | Optical Mode | TN, Normally White Display, Transmissive |
| Viewing Direction | 6 o'clock | Response Time | 25(Typ.)(Tr+Td)ms |
| Display Color | 262K/16.7M, 50% NTSC | Backlight Type | 3S9P WLED, 20K hours, without LED driver |
| Operating Frequency | 60Hz | Touch Function | No |
| Panel Weight | 154g(Typ.) | Panel Application | Automotive LCD Display |
| Interface | Parallel RGB(1 channel, 6/8-bit), 50 pins, FPC | ||
| Operating Voltage | 3.3/10.4/16.0/-7.0V(Typ.)(DVDD/AVDD/VGH/VGL) | ||
| Operating Environment | Operating Temperature: -30~85℃; Storage Temperature: -30~85℃ | ||
LCD Controller Board/LCD Driver Board
We provide comprehensive driver solutions for industrial TFT LCD panels, covering adapter boards and driver boards for common interfaces such as LVDS, eDP, MIPI, VGA, and HDMI. Whether you are using a standard LCD panel or a special specification LCD panel, we can help you quickly achieve signal conversion and screen brightness, significantly shortening your development cycle. In addition, if you have functional customization requirements for the driver board—such as OSD menu, wide voltage input, or temperature protection—please feel free to contact us. Our technical team will fully cooperate to develop the most suitable driver solution tailored to your needs.
Touch Panel
We offer three major types of touch panels: resistive touch panel, capacitive touch panel, and infrared touch panel, covering a wide range of applications including industrial control, medical equipment, automotive displays, and self-service terminals. Based on your operating environment, accuracy requirements, and cost budget, you can flexibly choose the touch solution that best fits your device. Additionally, we support professional touch panel bonding services, including both frame bonding and air bonding. These processes effectively improve optical performance, dust resistance, and shock resistance, making your device more competitive in the market.
Zhengzhou Hengxinda Technology Co., Ltd. is a professional Innolux LCD display supplier. We provide industrial LCD panels from Innolux, including outdoor high-brightness displays, wide-temperature LCD panels, bar display panels, and long-life backlight LCD displays. Product sizes range from 3.5 inches to 32 inches, and are widely used in industrial HMI, medical imaging, automotive displays, marine applications, military applications, security monitoring, digital signage, and self-service terminals. We support orders starting from just 1 piece, while offering flexible retail and bulk wholesale services to both distributors and retailers. Additionally, we provide one-stop technical support including custom driver boards for LVDS, eDP, MIPI and other interfaces, resistive/capacitive touch panel bonding (full bonding and air bonding), as well as custom cable services. Every LCD panel is strictly inspected and fully tested before shipment, ensuring reliable quality.
• Reliable Supplier: We provide original Grade A LCD screens from top brands such as AUO, Sharp, Tianma, BOE and Innolux, with stable supply and guaranteed quality.
✅️Equal quality, lower price. Equal price, better service. Contact us now for inquiries!
Q1. Can the Innolux AT070TN94 be used as car display monitors?
A: Absolutely. Innolux AT070TN94 is widely used in car display monitors, automotive central control screens and rear-seat entertainment systems. With its industrial-grade stability, wide temperature tolerance and excellent anti-vibration performance, it can well meet the requirements of vehicle-mounted environments.
Q2. How about Innolux AT070TN94 price?
A: Prices vary based on your specifications. Quality and stability are our top priorities. Our prices are mid-range in the industry, and we offer more competitive pricing for the same level of quality. For details, please contact us!
Q3. Does Innolux AT070TN94 have built-in touch functionality?
A: No. Innolux AT070TN94 is a pure LCD display module. If touch functionality is required, an additional touch screen needs to be configured. We offer matching resistive and capacitive touch screens, and also provide LCD panel/touch panel bonding services. Please contact our sales manager for details.
Q4. How long is your lead time?
A: Gernally, products in stock can be delivered within one week. For mass production orders, delivery takes two to three weeks after order confirmation. For customized products, the lead time will be re-evaluated accordingly.
Q5. Do you have MOQ requirements?
A: We have no MOQ for samples. However, for the second or third order of the same model, we require a MOQ of 50 pieces per order.
