WLED backlighting, up/down, left/right flip display, matte surface, 2-in-1 FPC.

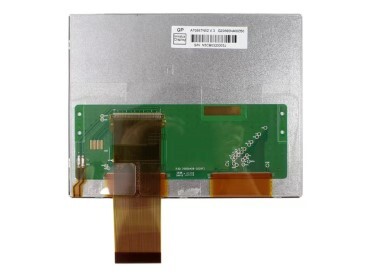

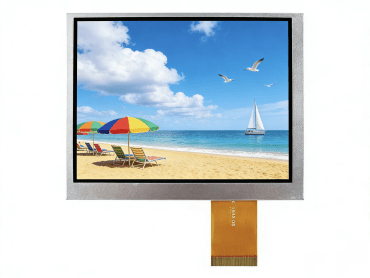

Chimei/Innolux AT056TN52 V.3 is a 5.6-inch TFT LCD display module specifically designed for miniaturization and high stability display requirements. It features a 640×480 VGA resolution, combined with an RGB vertical pixel layout, which can clearly present text and graphic details. With a brightness of 200 cd/m2 and a contrast ratio of 500:1, along with a matte surface treatment, it can effectively reduce environmental reflections, ensuring a clear and soft image even in indoor scenarios. It adopts a 3S5P WLED backlight system, with a lifespan of 20K hours, without the need for additional drivers, simplifying system integration. It has a wide operating temperature range of -20 to 70℃ and a storage range of -30 to 80℃, enabling stable operation in harsh conditions such as industrial sites and vehicle environments. Its lightweight design of only 127.5g is highly suitable for embedded devices that are sensitive to space and weight. It is an ideal choice for durable information display in industrial control, handheld terminals, and portable instruments.
| Brand | Chimei/Innolux | Type | a-Si TFT-LCD, LCM |
| Model | AT056TN52 V.3 | Surface Finish | Matte |
| Size (inch) | 5.6 | Pixel Layout | RGB Vertical Strip |
| Outline Dimension (WxHxD mm) | 126.5(W)×100(H)×6(D) | Optical Mode | TN,Normally white display, TM |
| Active Area (WxH mm) | 112.896(W)×84.672(H) | Backlight Type | 3S5P WLED, 20K hours, with LED driver |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Interface | Parallel RGB (1 ch, 8-bit) , FPC , 50 pins |
| Resolution | 640(RGB)×480, VGA,143PPI | Response Time | 10/15 (Typ.) (Tr/Td) ms |
| Brightness (cd/m²) | 200 | Display Colors | 16.7M |
| Contrast Ratio | 500:1 (Typ.) (TM) | Operating Temperature (°C ) | -20~ 70 |
| Operating Voltage | 3.3/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) | Storage Temperature (°C ) | -30~80 |
| Operating Frequency | 60Hz | Weight | 127.5g (Typ.) |
| Application | Industrial Control/Digital Photo Frame/Visual Doorbell/Visual Telephone | ||
◊ Industrial Control
♦ Applicable Products: Small Human-Machine Interface (HMI), Handheld Programmer, Industrial Sensor Display Terminal, etc.
♦ Value Realization: Wide temperature design and stable performance, ensuring continuous operation 24/7 in complex environments such as factory workshops, compact size suitable for small control devices.
◊ Medical Portable Devices
♦ Applicable Products: Portable Diagnostic Instruments, Blood Oxygen Monitors, Small Monitoring Devices, etc.
♦ Value Realization: Lightweight and low-power design, extending device battery life, high color accuracy to meet the precise display requirements of medical data.
◊ Commercial Retail Terminals
♦ Applicable Products: Small POS Machines, Self-service Payment Terminals, Signage Machines, Digital Photo Frames, etc.
♦ Value Realization: Matte screen reduces environmental reflection, enhancing customer operation experience, high stability reduces equipment failure rate.
◊ Security and Handheld Devices
♦ Applicable Products: Portable Law Enforcement Devices, Monitoring Camera Display Modules, Handheld Inspection Terminals, Visible Doorbells and Visible Telephones, etc.
♦ Value Realization: Compact size and wide temperature characteristics, suitable for outdoor mobile or home scenarios, clear picture to facilitate efficient on-site operations.
| Basic Information | Brightness (cd/m2) | 200 | Contrast Ratio | 500:1 (Transmission) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White display, Transmission | |
| Viewing Direction | 6 o’clock | Response Time | 10/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 16.7M ( 8-bit ) |
| Color Temperature | 6638K | Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Signal Electrical | Current Input | 10/16/0.12/0.13mA (Typ.)(ICC/IDD/IGH/IGL) | Voltage Input | 3.3/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) | |
| Consumption | 117mW (Typ.) | Signal System | Parallel RGB (1 ch, 8-bit) | ||
| Interface Features | Position | Back | Type | FPC | |
| Connector Detail | Brand | Model | Amount | Pin Pitch | Pins |
| --- | --- | 1pcs | 0.5 mm | 50 pins | |
| Back-light Features
| Lamp Type | WLED | Replacement | -- | Position | Edge Light type |
| Amount | 3S5P | Lamp Shape | Array | Life Time | 20K (Min.) hours | |
| Interface Features | Position | --- | Type | Included in the LCD screen signal interface | ||
| Driver Electrical | without LED Driver | |||||
| Driver Electrical | Current Input | 100±10mA | Voltage Input | 8.4/9.3/10.5V (Min./Typ./Max.) | ||
| Consumption | 930mW (Typ.) | |||||
