♦ Size: 8.4 inch
♦ Available Brightness: 350~1000 nits
♦ Available Resolution: 640x480/800x600/1024x768, etc. (customizable)
♦ Optional Touch Screen: Resistive Touch Screen (4-Wire/5-Wire)
Capacitive Touch Screen(I²C/USB/RS232), etc.
♦ Bonding Method: Optional Bonding Technology
(Air Bonding (Frame Bonding) / Full Bonding)

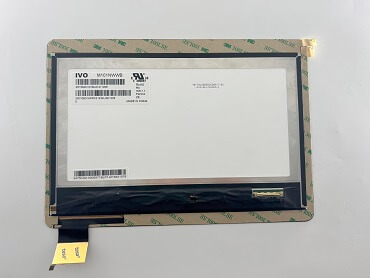

The 8.4-inch panel mounted touch screen connects the TFT LCD display and the touch screen through frame bonding or full bonding (Optional bonding methods). We supply original TFT LCD panels from branded manufacturers, including Innolux, AUO, BOE, Kyocera, IVO and other brands. We can customize compatible touch screens according to your requirements. Capacitive touch screens support multi-touch functionality, fast response times, and clear image quality, making them ideal for advanced user interfaces. Resistive touch screens are well-suited for environments that require glove or stylus input and offer strong resistance to moisture, dust, and accidental activation. We help guide you to the best choice based on your design and usage requirements. If you intend to buy touch screen displays, please feel free to contact us for the touch screen display price. We have listed part of our 8.4-inch panel mounted touch screens in the following table for your review and selection.
Table 1---8.4-inch Panel Mounted Touch Screen
TFT LCD Display
Touch Screen
Model
Brand
Brightness (nit)
Resolution
Interface
Active Area
Operating Temperature
Resistive Touch Screen
Capacitive Touch Screen
4-wire
5-wire
I2C
USB
RS232
M084GNS1 R1
IVO
350
800×600
LVDS
170.4(W)×127.8(H) mm
-20 ~ 70 °C
√
Customizable
P0840XGF1MA00
Tianma
1000
1024×768
170.496(W)×127.872(H) mm
-30 ~ 80 °C
P0840XGF1MB00
600
199.5(W)×149(H) mm
TCG084VGLAAANN-AN50
Kyocera
850
640×480
TTL
170.88(W)×128.16(H) mm
NL6448BC26-27
NEC
500
NL8060BC21-11F
800
TCG084SVLPAANN-AN30
750
G084SAN01.0
AUO
450
-30 ~ 85 °C
G084XAN01.0
The 8.4-inch panel mounted touch screen adopts strict factory bonding technology, delivering superior display and touch performance for an enhanced customer experience. It features a compact structure, high stability and excellent environmental adaptability, making it widely applicable to various intelligent terminals and industrial control equipment. These include industrial control devices, human-machine interface (HMI), interactive touch display devices, marine touch screen monitors and commercial digital signage touch panels. It can meet the demand for highly reliable touch displays in industries such as industrial automation, marine, commercial display and intelligent interaction.
Q1. Are all your panels mounted touch screen listed? What if the model I require is unavailable?
A: The panels mounted touch screen shown on the page are not our full products. Due to the large variety and regular updates, we cannot display every model. We provide full customization for TFT LCD panels and touch screens according to your requirements. If you need a customized display solution, please contact us via the information on the page to obtain technical data and a quotation.
Q2. What is your team?
A: Our team has over 15 years of industry experience. We have served thousands of clients across military, industrial control, transportation, medical and other fields, accumulating rich professional experience. We help customers save significant time on LCD panel selection and avoid potential risks in the pre-sales stage.
Q3: Can you provide professional advice if I am unsure which model to choose?
A: This is exactly our expertise. Please let us know your specific requirements, including application environment, budget and performance specifications. Our engineers will conduct a horizontal comparative analysis and recommend the most cost-effective solution for you.
Q4: What is the minimum order quantity (MOQ) for these 8.4-inch Panel Mounted Touch Screens?
A: The MOQ varies by model. We strongly encourage sample testing before mass production. However, samples require paid testing. If the samples pass the test successfully, we are willing to apply for a discount on your purchases.
Q5: Does the product come with a warranty?
A: Yes. We offer a 12-month warranty for standard products, starting from the date of receipt. The warranty covers manufacturing defects excluding man-made damage.
