♦ Size: 5.6 inch
♦ Available Brightness: 250~500 nits
♦ Available Resolution: 640x480 (customizable)
♦ Optional Touch Screen: Resistive Touch Screen (4-Wire/5-Wire)
Capacitive Touch Screen(I²C/USB/RS232), etc.
♦ Bonding Method: Optional Bonding Technology
(Air Bonding (Frame Bonding) / Full Bonding)
The 5.6-inch Industrial TFT LCD Display Kit provides an integrated touch solution that meets the stringent requirements of industrial environments, featuring exceptional stability, strong environmental adaptability, and more precise interaction. With a 5.6-inch TFT LCD panel supporting a 640×480 resolution, we offer two touch options: resistive touch screen and capacitive touch screen. For the bonding method between the TFT LCD panel and touch screen, both frame bonding and full bonding are available, and all configurations can be customized according to your specific application scenarios and requirements. The bonding process is a crucial part of the industrial kit, and our factory implements standardized operations to ensure consistent bonding quality. The table below lists some of our 5.6-inch industrial TFT LCD Display Kits with resistive/capacitive touch solution for your reference and selection.
Table 1---5.6 inch Industrial Display kits with Resistive / Capacitive touch Solution
TFT LCD Display
Touch Screen
Model
Brand
Brightness (nit)
Resolution
Interface
Active Area
Operating Temperature
Resistive Touch Screen
Capacitive Touch Screen
4-wire
5-wire
I2C
USB
RS232
AT056TN53 V.1
Chimei
500
640×480
TTL
112.896(W)×84.672(H) mm
-20 ~ 70 °C
√
Customizable
HXD056TN52V.4
HXD
250
RGB

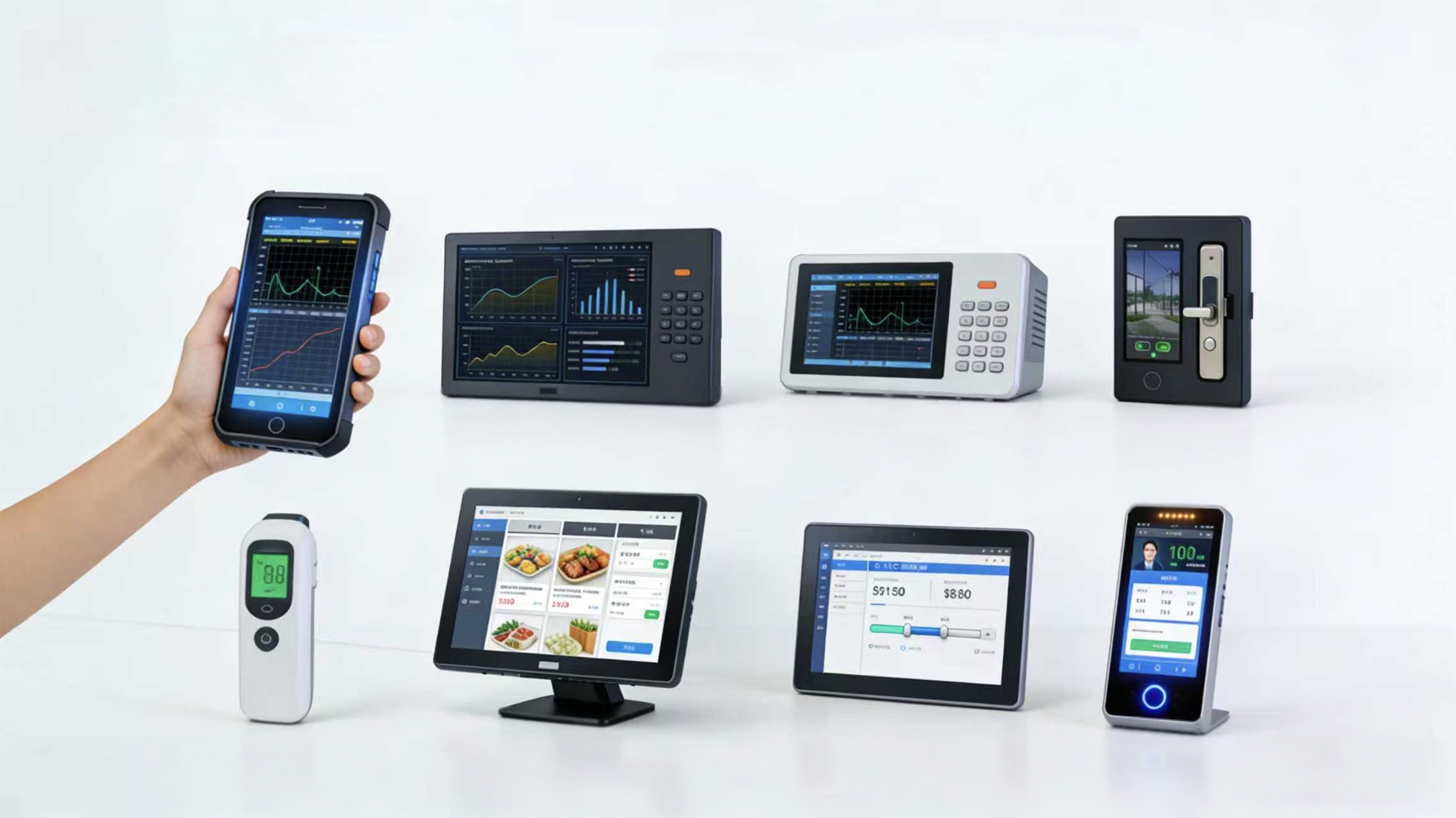

The 5.6-inch industrial TFT LCD display kit boasts a wide range of applications, including PLC control panels, small industrial controllers, and on-site production line operation terminals in industrial control and automation equipment; portable medical monitors and medical handheld operating terminals in medical and healthcare devices; electronic measuring instruments and laboratory analysis equipment in instrumentation and testing equipment; as well as vehicle-mounted control displays and monitoring terminals for ships and special vehicles in automotive and construction machinery applications.
Q1: What are the core differences between frame bonding and full bonding for the 5.6-inch Industrial TFT LCD Display Kit?
A: Frame bonding features lower cost and a simpler production process; it is easy to rework and repair in case of defects, making it suitable for cost‑sensitive conventional industrial scenarios with moderate requirements.Full bonding eliminates the air gap, delivering better display performance, clearer and more transparent visibility under sunlight, and higher touch sensitivity. However, it involves a more complex process and correspondingly higher cost.For applications demanding superior display quality, sunlight readability, dust and moisture resistance, and better touch performance, full lamination is the preferred choice.
Q2: Does this 5.6-inch Industrial TFT LCD Display Kit support wide-temperature operation?
A: Yes, this 5.6-inch industrial LCD display kit supports wide-temperature operation within the range of -20°C to 70°C. It can operate stably in harsh high and low temperature environments, meeting the long-term reliable application requirements of industrial sites, vehicle-mounted and outdoor equipment.
Q3: What interface options are available for the LCD panel in the 5.6-inch Industrial TFT LCD Display Kit?
A: The 5.6-inch industrial display kit mainly offers TTL interface and RGB interface.TTL interface features a simple circuit and low cost, compatible with most small-sized industrial screens, and is easy to wire.RGB interface provides more stable signal transmission, better image quality, strong anti-interference ability, and supports higher resolution and longer transmission distance.
Q4: What is the minimum order quantity (MOQ) for these 5.6-inch Industrial TFT LCD Display Kits?
A: The MOQ varies by model. We strongly encourage sample testing before mass production. However, samples require paid testing. If the samples pass the test successfully, we are willing to apply for a discount on your purchases.
Q5: Is Innolux AT056TN53 V.1 available with touch screen and customization?
A: Yes. We supply Innolux AT056TN53 V.1 LCD with capacitive touch screen or resistive touch screen, supporting full lamination/frame bonding customization, technical support, competitive price and good service.
Q6: What is the warranty period for your 5.6-inch industrial TFT LCD Display Kit?
A: We offer a standard 12-month warranty against manufacturing defects (non-human damage), providing free repair or replacement services.
