Size: 27 inch
Available Brightness: 800~2000 nits (customizable)
Available Interface: LVDS / eDP / VGA / HDMI / DVI.
Available Resolution: 1920×1080 / 3840×2160, etc. (customizable)
Available Touch Panel: Resistive touch panel, Capacitive touch panel, and Infrared touch panel.
Available Bonding Service: Frame Bonding / Full Bonding
Available Accessories: LCD Controller Board, OSD Rotary Knob Cable, OSD Keyboard, Light Sensor Cable, Custom Cables, etc.
This series features 27-inch industrial-grade outdoor high-brightness LCD displays, specifically designed for semi-outdoor industrial environments and strong outdoor lighting conditions. Brightness ranges from 800 to 1500 nits, ensuring clear visibility even under direct sunlight, unaffected by backlighting or ambient light interference.
27 inches is a mid-sized LCD panel with a wide range of applications. All our 27-inch sunlight readable displays use original panels from AUO, BOE, and Tianma, featuring industrial-grade ruggedized structures. AUO's 27-inch high-brightness LCD panels can operate within a temperature range of 0-50℃. BOE and Tianma's 27-inch high-brightness LCD screen series offer an even wider operating temperature range. Below is a list of our 27-inch outdoor sunlight readable LCD screen models.
Table 1 27-inch Outdoor High Brightness Display Panel Product List
| Brand | Model | Active Area | Outline Dimension | Brightness (nits) | Resolution | Contrast Ratio | Backlight | Interface | Pins | Operating Temperature | Production State |
| AUO | 596.16(H)×335.34(V) mm | 630(H)×368.2(V)×23.4(D) mm | 800 | 3840×2160 | 1000:1 | WLED | V-by-One 8 lanes | 51 | 0~50℃ | In Production | |
| AUO | 596.16(W)×335.14(H) mm | 630(W)×368.2(H)×23.4(D) mm | 800 | 3840×2160 | 1000:1 | WLED | eDP (8 Lanes),HBR1(2.7G/lane) | 51 | 0~50℃ | Out of Production | |
| AUO | 596.16(H)×335.34(V) mm | 630(H)×368.2(V)×23.4(D) mm | 800 | 3840×2160 | 1000:1 | WLED | eDP (8 Lanes),HBR1(2.7G/lane) | 51 | -20~60℃ | Out of Production | |
| AUO | 596.16(H)×335.34(V) mm | 630(H)×368.2(V)×19.8(D) mm | 850 | 3840×2160 | 2000:1 | WLED | eDP(4 Lanes),HBR2(5.4G/lane) | 51 | 0~50℃ | In Production | |
| AUO | 596.16(W)×335.14(H) mm | 630(W)×368(H)×22.5(D) mm | 850 | 3840×2160 | 1000:1 | WLED | eDP (8 Lanes) | 51 | 0~50℃ | Out of Production | |
| AUO | 597.888(H)×336.312(V) mm | 630(H)×368.2(V)×23.4(D) mm | 1000 | 1920×1080 | 1000:1 | WLED | LVDS | 51 | 0~50℃ | In Production | |
| AUO | 597.888(W)×336.312(H) mm | 630(W)×368.2(H)×23.4(D) mm | 1000 | 1920×1080 | 1000:1 | WLED | LVDS | 51 | 0~50℃ | In Production | |
| BOE | 596.736(W)×335.664(H) mm | 623.34(W)×362.3(H)×18.7(D) mm | 1000 | 3840×2160 | 1200:1 | WLED | eDP(4 Lanes),HBR2(5.4G/lane) | 30 | -20~60℃ | In Production | |
| BOE | 596.736(H)×3 | 623.34(H)×362.3(V)×18.7(D) mm | 1000 | 3840×2160 | 1200:1 | WLED | eDP(4 Lanes),HBR2(5.4G/lane) | 30 | -20~60℃ | In Production | |
| BOE | 597.888(H)×336.312(V) mm | 626(H)×363.8(V)×15(D) mm | 1500 | 1920×1080 | 1000:1 | WLED | LVDS(2 ch, 8-bit) | 30 | -20~60℃ | In Production | |
| Tianma | 596.16×335.34 mm (H×V) | 630×368×31.2 mm (H×V×D) | 1500 | 1920×1080 | 1000:1 | WLED | LVDS(2 ch, 8-bit) | 30 | -30~70℃ | In Production |
✅️ All product models are currently in stock. If you are interested, please contact us for a detailed quote and a free specification sheet.

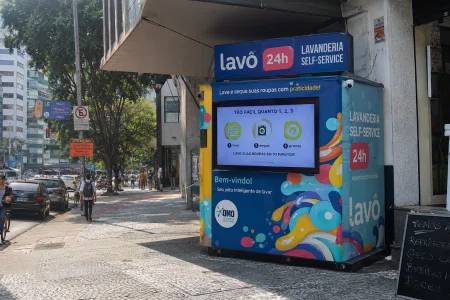

One of our Brazilian clients, Ronaldo, a self-service equipment integrator, purchased our AUO G270ZAN02.1 27-inch sunlight-readable LCD panels, primarily for use in his 24-hour self-service laundry and vending machine systems, as shown in the picture. In outdoor settings, the brightness is perfect, especially in shady areas. The content displayed onG270ZAN02.1 screen is clearly visible, and user operation is convenient and quick. With the stable operation of our client's equipment and the simple integration of AUO G270ZAN02.1, our client's monthly profits have increased by approximately 30% compared to the past.
The 27-inch outdoor high-brightness display is an industrial-grade display terminal specifically designed for harsh outdoor environments characterized by strong sunlight, wide temperature ranges, and dust and water resistance. It remains clearly visible under direct sunlight and supports stable 24/7 operation, making it the core hardware for outdoor information dissemination, self-service interaction, and industrial monitoring.
• Industrial Applications: Industrial PCs, CNC machine tools, information display terminals, PLC control panel screens, mining/chemical plants, and on-site energy monitoring displays.
• Transportation Applications: Bus stop displays, waiting hall information screens, subway/airport information displays, and gate displays—primarily used for information display in public spaces.
• Commercial Applications: POS systems, shopping mall wayfinding screens, and digital advertising signage.
• Medical Applications: Surgical monitors, endoscopy display terminals, ultrasound displays, patient monitor screens, and operating room information screens.
• Self-Service Equipment: Payment kiosks, ticketing machines, information kiosks, smart parcel lockers, locker display panels, ATM screens, charging stations, and fuel dispensers—any equipment requiring self-service interaction utilizes LCD displays.

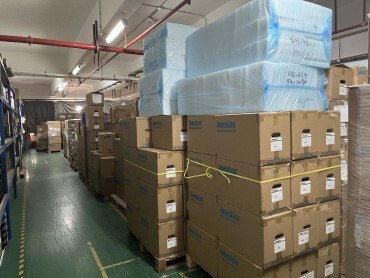

In fact, 27 inch high brightness display panels have a wide range of industry applications, and our customers use 27-inch sunlight-readable LCD panels across various fields. We keep full-spec outdoor high brighntess display in stock and provide one-stop services including brightness customization, interface cable customization, touch screen matching and supporting cable supply. We offer full-process support from model selection and sample testing to bulk supply, helping you save development and test time, and reduce procurement and after-sales costs.
Established in 2013, Zhengzhou Hengxinda Technology Co., Ltd. is a professional supplier and solution provider of industrial LCD displays, touch screens and display accessories in China. With over 10 years of industry experience, we focus on small-to-medium size industrial-grade display panels, including high-brightness display panels, wide-temperature display panels, automotive LCD displays.
We are authorized distributors of well-known brands such as AUO, Innolux, Sharp, IVO and BOE, ensuring stable quality, reliable supply and competitive pricing. Our product range covers 3.5” to 32” industrial LCD display modules, capacitive/resistive touch screens, LCD driver boards and custom display solutions, widely used in industrial automation, CNC machinery, medical equipment, vehicle & construction machinery, instrumentation and outdoor terminals.
We offer one-stop services including brightness customization, interface modification, touch integration, cable matching and technical support, helping customers reduce development time and procurement costs. Committed to “Quality First, Customer Oriented”, we have served hundreds of clients worldwide with stable products, professional support and honest cooperation. We sincerely look forward to becoming your trusted long-term display partner.
Q1: What is the price range for 27-inch high-brightness LCD screens?
A1: TFT LCD panel prices vary depending on the brand, brightness, resolution, and protection rating. Due to rapid product updates and iterations, the price of 27-inch high-brightness LCD screens is determined by their production status and market inventory levels. However, the 27-inch sunlight-readable LCD screens we supply are all sourced directly from the manufacturer and shipped in their original factory packaging at very competitive prices. Exclusive discounts are available for bulk purchases.
Q2: What customization options are available?
A2: We can customize brightness, resolution, protection rating, interfaces, touch functionality, and exterior design. Standard customization lead times are 7–25 days; complex designs take 15–35 days.
Q3: How do I request a sample?
A3: We accept sample requests with no MOQ. Contact us via WhatsApp or email to let us know your preferred model. Samples use the same panels, manufacturing processes, and testing standards as mass-produced products, ensuring complete consistency. They can be used to test brightness, compatibility, and image quality.
Q4: What is the MOQ for bulk purchases?
A4: The standard minimum order quantity is 50 units. Bulk order quantities qualify for greater discounts, and we also offer customized packaging.
Q5: If I’m not satisfied with the sample after testing, can I return or exchange it?
A5: Samples are eligible for a 7-day return or exchange with no questions asked (provided the product remains intact, undamaged, and in resalable condition). Once you’re satisfied with the sample, subsequent bulk orders will be prioritized for production, shortening the lead time. You’ll also enjoy bulk purchase discounts, and we’ll assign a dedicated representative to monitor production and shipping progress throughout the process.
Q6: Do the models listed in your table represent all the models you supply?
A6: The models listed in the table represent only a portion of our offerings. Since LCD screens undergo rapid updates and iterations, we frequently update this table. If you have a specific model in mind that is not listed, please contact us via WhatsApp or email to request a free datasheet and detailed quotation.

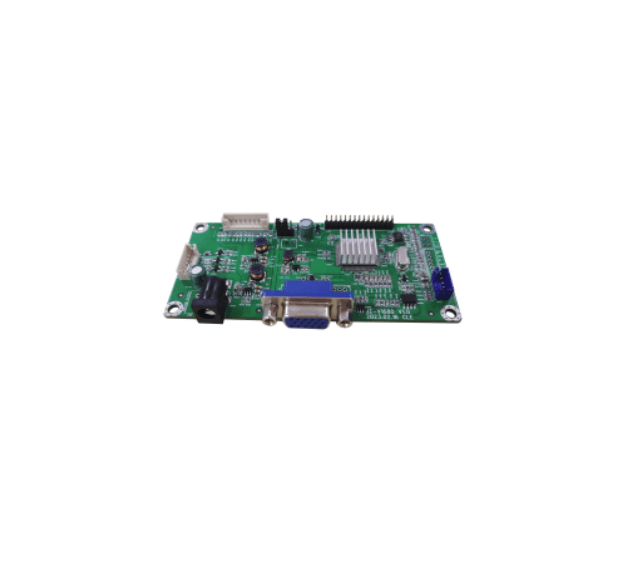

HXD-V53 LCD display driver board is a multi-interface industrial LCD driver board that supports HDMI, VGA, DVI, YPBPR and CVBS signal inputs, as well as LVDS and CVBS signal outputs. Supports 1080P full HD multimedia decoding. Optional 2×6W amplifier, or audio transmission via adjustable FM radio for vehicle radio reception. Media intercutting available during playback. True-color image/video boot screen, vertical flip, multi-language OSD and IR remote control supported. HXD-V53 LCD control board offers comprehensive functionality, convenient debugging and stable operation, providing a one-stop solution for LCD driver requirements in industrial control equipment.
| Model | HXD-V53 |
| Maximum resolution | 1920 x 1080 |
| Mechanical Dimension | 132.13mm x 82.13mm x 15mm |
| Operating Temperature | -20~60℃ |
| Input Interface | 2 CVBS input, 1 VGA input, 1 HDMI/DVI input, 1 YPBPR input, 1 USB (capable of reading high-definition video and images), 1 audio input |
| Output Interface | Dual LVDS output, 1 CVBS output, 1 audio output |
