24 Inch Five-Wire Analog Resistive Touch Panel

♦ Brand: HIGGSTEC

♦ Model: T240S-5RB002N-0A28R0-150FH

♦ MOQ: 1 pcs

♦ Sample: Paid Sample

♦ Payment Method: T/T, Paypal, Cash, Alipay, Wechat

♦Product Description: HIGGSTEC 24" 5-wire resistive touch panel, industrial grade with -10°C to +70°C operating temperature, 80% transparency, and 10 million actuations. Ideal for industrial HMI, military devices, medical devices, marine devices, digital signage, POS machines, and kiosk machine applications.

♦ Important parameters of T240S-5RB002N-0A28R0-150FH:

Active Area (L × W)	531.4 × 298.9 mm	Outline Dimension (L × W × H)	555.4 × 322.6 × 3.2 mm
Aspect Ratio	16:9	Touch Stack-up	FG
Linearity	X≦1.5%,Y≦1.5%	Knock Test	10,000,000 times
Operation	-10 to +70 ℃	Storage	-40 to +80 ℃
Transparency	80 % ± 3%	Haze	8%±3%
Hardness	3H Pencil, Pressure 750g/45°	Operating Force	Stylus=R0.8 ≦ 50g

24 Inch Five-Wire Analog Resistive Touch Panel T240S-5RB002N-0A28R0-150FH

HIGGSTEC T240S-5RB002N-0A28R0-150FH is a 24 inch five-wire analog resistive touch panel. This 5-wire touch screen panel boasts a wide operating temperature range of -10℃ to +70℃ and extreme storage tolerance of -40℃ to +80℃, easily handling various harsh environments. It features a touch lifespan of up to 10 million touch cycles, a surface hardness of 3H, scratch and wear resistance, and long-lasting stability. In terms of optical performance, it achieves a light transmittance of 80%±3%, coupled with high linearity of X/Y ≤ 1.5%, ensuring sensitive and accurate touch input, supporting finger or R0.8 stylus input. The 5-wire touch screen panel has passed reliability tests including high temperature and humidity, and thermal cycling, and comes with a 1-year warranty. It is widely applicable to commercial and industrial scenarios requiring high stability and long lifespan, such as industrial HMIs, medical equipment, self-service terminals, and smart retail.

II. Detailed Parameters of 24-inch 5-Wire Resistive Touch Panel T240S-5RB002N-0A28R0-150FH

Category	Analog Resistive Touch Panel	Safety Approvals	CE, RoHS, UL
Brand	HIGGSTEC	Aspect Ratio	16:9 (Width:Height)
Model	T240S-5RB002N-0A28R0-150FH	Active Area	531.4 × 298.9 mm
Screen Size	24 inch	Viewable Area	535.40 × 303.00 mm
Tag	5-Wire Analog Resistive Touch Panel	Outline Dimension	555.4 × 322.6 mm
Standard	Standard Off-the-Shelf Product	Overall Thickness	3.2 mm
Construction	Film / Glass	Surface Hardness	Hard coating (3H), AG
Touch Type	Single Touch	Simultaneous Touch Points	Single Touch
Tail Position	9 o'clock	Touch Mode	Point Touch
Tail Length	150 mm	Controller Type	External (Separate)
Transmittance	80% ± 3%	Controller Interface	USB, RS232
Operating Temperature	-10 ~ +70 °C	Storage Temperature	-40 ~ +80 °C
Input Mode	Stylus or Finger	Cable	FFC
Loop Resistance	X:20~500Ω Y:20~500Ω	Chattering	≦15ms
Insulation	≧20MΩ/25V(DC)	Endurance	No acting damage at DC50V/60sec.
Key Description		HIGGSTEC 24" Wide Temperature 5-Wire Resistive Touch Screen F+G Industrial / Medical / Military Grade

III. Matching LCD Controller Board

We offer two matching LCD driver boards for the 24" five-wire resistive touch panel. Both LCD driver boards support USB and COM interfaces, allowing your device to flexibly choose the communication method according to actual needs and achieve stable touch signal transmission.

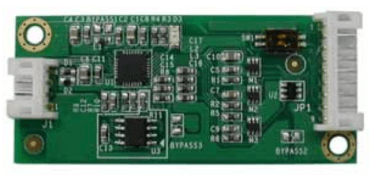

No.1 PenMount 6300 USB Interface LCD Driver Board

PenMount 6300 controller supports 4-wire, 5-wire, and 8-wire analog resistive touch panels. When paired with the PenMount controller driver, its performance is maximized. The LCD driver board features the PenMount 6000 control IC, which includes an MPU and a 10-bit A/D converter, with an optional 12-bit ADC also available. The LCD driver board is equipped with two connectors: one side can be connected to a 4/5/8-wire resistive touch panel (optional), and the other side can be connected to a 4-pin USB cable. ️Professional solutions, one-stop shopping. Send an inquiry to contact us for more information!

PenMount 6300 USB Interface LCD Driver Board - Specifications:

Touch Panel Support	Supports 4-wire, 5-wire, and 8-wire analog resistive touch panels	Transmission Rate	USB Full Speed, 12Mbps
Touch Panel Control IC	PenMount 6000 IC	Resolution	1024×1024 / 4096×4096 (optional)
Board Dimensions	60×26×18.3 mm, with two 3φ screw holes	Supported Rotation Angles	Supports 90°, 180°, and 270° screen rotation
Impedance Range	50 ~ 1.3K ohms	Error Correction	Onboard error correction LED indicator
Operating Voltage	+5V DC	Power Consumption	Standby mode: 13.4 mA; Operating mode: 24.6 mA
Storage Temperature	-40℃ ~ 85℃	Operating Temperature	-20℃ ~ 70℃

No.2 ETP-MB-R4502UPEG LCD Controller Board

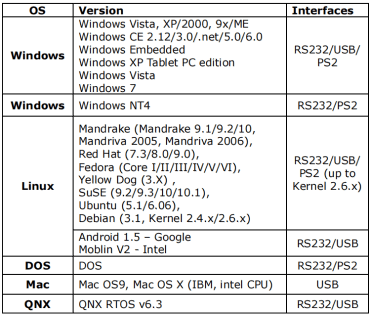

The 4 / 5-Wire USB touch panel LCD controller board provides the optimistic performance of your analog resistive touch panels for 4 or 5 wire models. It communicates with PC system directly through USB connector. You can see how superior the design is in sensitivity, accuracy and friendly operation. The touch panel driver emulates mouse left and right button function and supports operation systems as following. ️Professional solutions, one-stop shopping. Send an inquiry to contact us for more information!

ETP-MB-R4502UPEG LCD Controller Board Specifications:

Circuit Board Dimension	20mm x 70mm (0.79 inches x 2.75 inches)	Relative Humidity	95% at 60 ℃, RH Non-condensing
Operating Temperature	-25 to 80 ℃	Storage Temperature	-55 to 150 ℃
Interface	USB: 1.1 Full Speed	Resolution	2048 × 2048 resolution
Report Rate	USB: Max. 200 points/sec	Response Time	Max. 20 ms
Attached Cable	180cm shielded cable with USB-A connector	EMI	Unaffected by environmental EMI
Power Requirements	D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)	Regulatory Approvals	FCC-B , CE, Unaffected by EMI from other nearly CRTs and other display devices CRTs
Panel Resistance	4 wire resistive model: 200 ~ 900 ohm; 5 wire resistive model: 50 ~ 200 ohm
