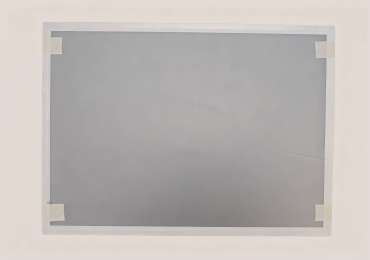

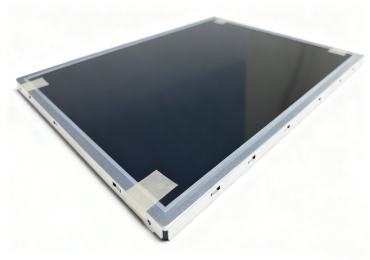

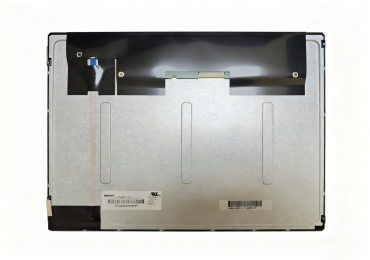

Size: 15 inch
Available Brightness: 800~2000 nits
Available Resolution: 1024x768, etc. (customizable)
Available Accessories: Touch Screen, Driver Board, OSD Rotary Knob Cable, OSD Key Board, Light Sensor Cable , Custom Cables, etc.
Brand
Model
Size
Resolution
Brightness
（nits)
Contrast Ratio
Backlight Type
Interface
Pins
Operation Temperature
AUO
G150XTN06.C
15"
1024x768
800
800:1
WLED
eDP
30
-30~75℃
G150XTN06.B
LVDS
20
G150XAN02.1
2000:1
-20~75℃
Tianma
P1500XGF2MA00
1500
1000:1
-20~70℃
G150XAN02.2
1800
-30~70℃
G150XTNo6.A
More models can be found in LCD Panel
15-inch high-brightness LCD displays are primarily utilized in the fields of industrial automation and intelligent manufacturing, as well as in outdoor self-service terminals and public facilities—such as EV charging stations, self-service ticketing machines, outdoor information kiosks, and fuel dispenser displays. Furthermore, they play a significant role in medical imaging equipment and in-vehicle display systems—including patient monitors, portable ultrasound diagnostic devices, and high-end automotive central control screens—where they are subject to rigorous requirements regarding color accuracy, response speed, and long-term stability.
Accessory Name
Accessory Picture
Accessory Description
This AD board serves as the core control hub for the high-brightness LCD screens. It can convert HDMI/VGA/LVDS signals into the TTL/eDP signals required by the screen and drive the backlight brightness to over 800 nits. It typically supports operation within a wide temperature range (-30°C to 75°C), and integrates a constant current LED boost circuit to ensure stable brightness even in strong outdoor sunlight.

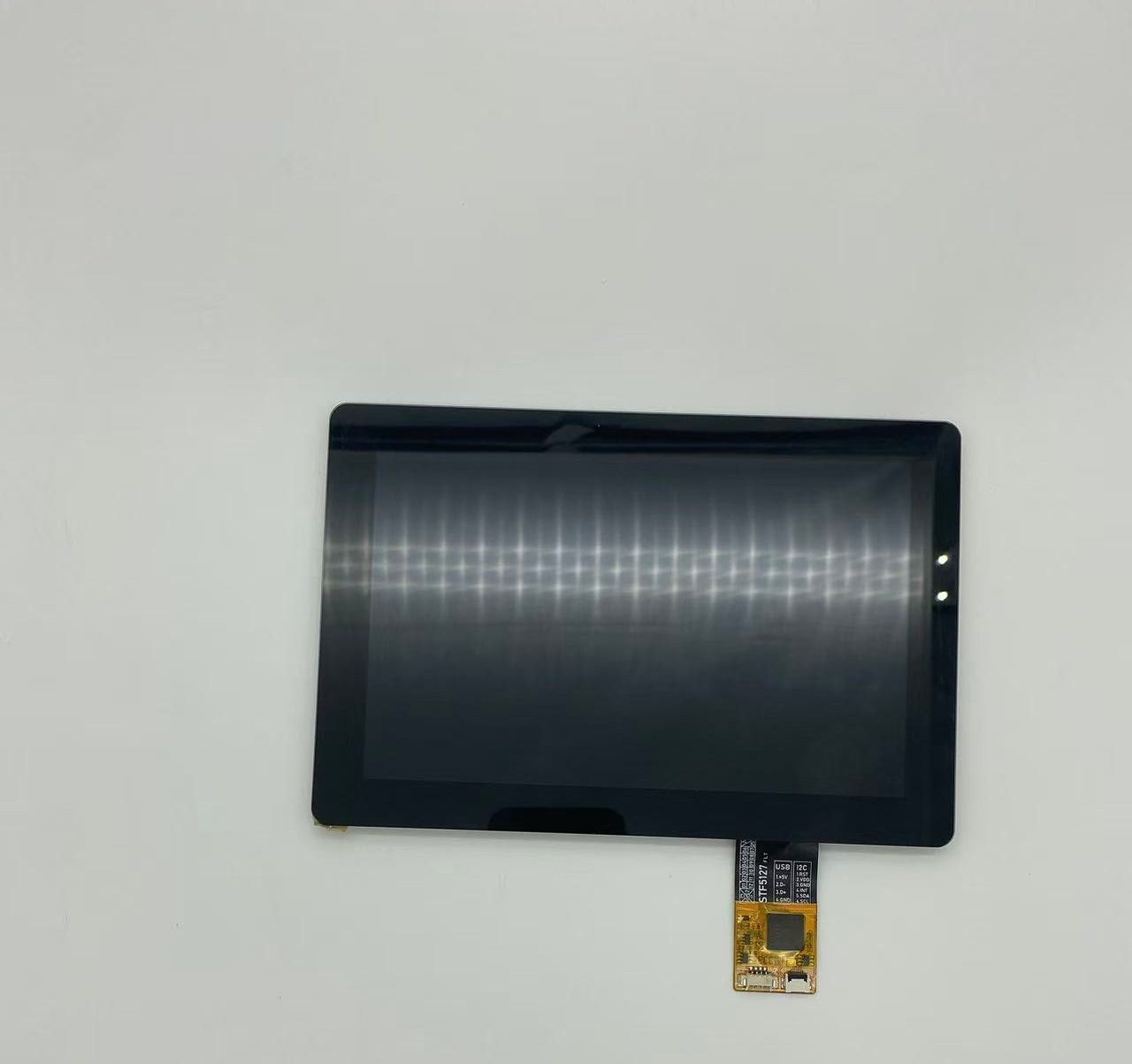

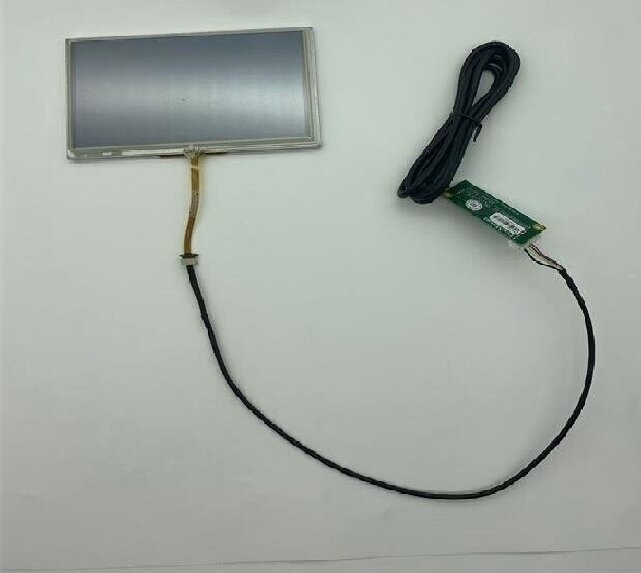

(1) 15-inch capacitive touch screen supports 10-point precise operation and can add AG/AF/AR function. (2) 15-inch resistive touch screen supports single-point precise touch. Outdoor models usually adopt optical bonding technology to eliminate air gaps, thereby significantly improving the light transmittance and contrast.
This cable is connected to the ambient light sensor, which continuously monitors the intensity of external light and transmits the signal to the driver board, thereby enabling the automatic dimming function.
Outdoor equipment usually has knobs for quick adjustment to the optimal visible brightness.
Dimming cables paired with 5-10 key small keypads enable manual adjustment of brightness. Outdoor equipment often positions knobs or waterproof buttons externally on the housing for quick on-site adjustment to optimal visibility brightness.
The photosensitive cable connects to the ambient light sensor, continuously monitoring external light intensity and transmitting signals to the driver board to enable automatic dimming.
1. What is the exact brightness level of this 15-inch high-brightness LCD TFT display? A: This display achieves over 1000 nits brightness, ensuring clear visibility even in intense light conditions (such as outdoor sunlight). It is ideal for outdoor equipment, industrial control panels, and similar applications. For specialized requirements, please contact us for custom solutions.
2. What interfaces does your display support? Q: It supports mainstream interfaces like HDMI, VGA, and LVDS, compatible with most devices out-of-the-box. For specialized interfaces, we offer custom solutions.
3. What is the display's lifespan? Q: Under normal use, it lasts over 50,000 hours. We provide a 1-year full-unit warranty covering free repair or replacement for non-human-induced failures.
4. Are you a manufacturer or distributor? A: We are a manufacturer with direct sales. We support bulk orders, with standard orders shipping within 3-5 days. Delivery times for large orders can be negotiated based on requirements.

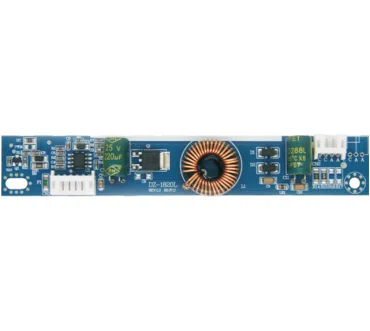

HXD-1820L is a high-performance LED driver board designed specifically for the backlight systems of 12 to 24-inch LCD displays. This DC-DC LED inverter serves as a universal LED backlight driver module for a wide range of TFT LCD panels. Both the LED backlight driver board and the connectable cables can be customized. And the standard version of HXD-1820L backlight driver board has an operating temperature of -20 to 70 ℃. Components can be replaced according to your requirements, and the operating temperature can reach -30 to 100℃.
