♦ Brand: HIGGSTEC
♦ Model: T101S-5RB001N-0A18R0-150FH
♦ MOQ: 1 pcs
♦ Key Technologies:
• High-temperature process
• Bonding technology
• Narrow bezel design
♦ Sample: Paid Sample
♦ Payment Method: T/T, Paypal, Cash, Alipay, Wechat
♦ Important parameters of T101S-5RB001N-0A18R0-150FH:
3H Pencil, Pressure 750g/45°

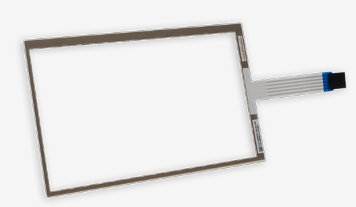

T101S-5RB001N-0A18R0-150FH is a 10.1-inch 5-wire analog resistive touch panel featuring a 4:3 widescreen aspect ratio with an active touch area of 222.72mm × 125.28mm. Its narrow bezel design makes it easy to integrate into various embedded devices, portable terminals, and rack-mounted HMI devices.
In terms of environmental adaptability, the wide-temperature resistive touch panel supports an operating temperature range of -20°C to 70°C. Combined with HIGGSTEC's unique high-temperature process and tail-end bonding technology, it effectively withstands harsh conditions such as high heat, high humidity, drastic temperature fluctuations, dust, and oil contamination, ensuring long-term stable and reliable operation. It is specifically designed for demanding applications including industrial control panels, medical monitoring equipments, military vehicle-mounted terminals, and outdoor self-service kiosks where stability, durability, and wide-temperature performance are critical.
This 10.1-inch 5-wire resistive touch panel supports multiple input methods such as finger and stylus pen, with a single-tap actuation life of up to 10 million times, significantly reducing equipment maintenance frequency. It is an ideal choice for industrial HMI manufacturers, medical device integrators, and military project procurement teams.
✅️ In stock and ready to ship with fast response. Send an inquiry to contact us for more information!
Category
Touch Screen & Controller > Analog Resistive Touch Screen
Safety Approvals
CE (Europe), RoHS (EU), UL (United States)
Brand
HIGGSTEC
Aspect Ratio
4:3 (Width:Height)
Model
T101S-5RB001N-0A18R0-150FH
Active Area
211.58 × 158.75 mm
Screen Size
10.1 inch
Viewable Area
215.58 × 162.75 mm
Tag
5-Wire Resistive Touch Screen
Outline Dimension
228.7 × 173.4 mm
Standard
Standard Off-the-Shelf Product
Overall Thickness
2.1 mm
Construction
Film / Glass
Surface Hardness
Hard coating (3H)
Touch Type
Single Touch
Simultaneous Touch Points
Tail Position
12 o'clock
Touch Mode
Point Touch
Tail Length
155 mm
Controller Type
External (Separate)
Transmittance
≥80%
Controller Interface
USB, RS232
Operating Temperature
-30 ~ +70 °C
Storage Temperature
-40 ~ +80 °C
Key Description
HIGGSTEC 10.1" Wide Temperature 5-Wire Resistive Touch Screen F+G Industrial / Medical / Military Grade
We offer two matching LCD driver boards for the 10.1" five-wire resistive touch panel. Both LCD driver boards support USB and COM interfaces, allowing your device to flexibly choose the communication method according to actual needs and achieve stable touch signal transmission.

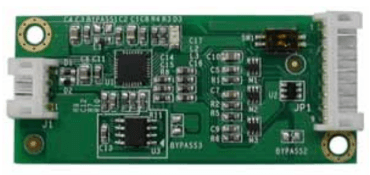

No.1 PenMount 6300 USB Interface LCD Driver Board
PenMount 6300 controller supports 4-wire, 5-wire, and 8-wire analog resistive touch panels. When paired with the PenMount controller driver, its performance is maximized. The LCD driver board features the PenMount 6000 control IC, which includes an MPU and a 10-bit A/D converter, with an optional 12-bit ADC also available. The LCD driver board is equipped with two connectors: one side can be connected to a 4/5/8-wire resistive touch panel (optional), and the other side can be connected to a 4-pin USB cable. Professional solutions, one-stop shopping. Send an inquiry to contact us for more information!
PenMount 6300 USB Interface LCD Driver Board - Specifications:

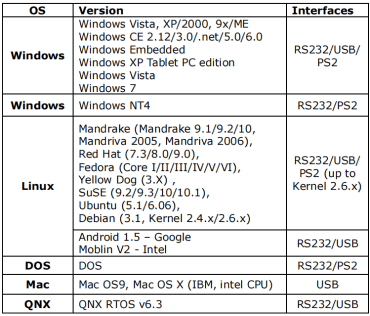

No.2 ETP-MB-R4502UPEG The 4 / 5-Wire USB touch panel LCD controller board provides the optimistic performance of your analog resistive touch panels for 4 or 5 wire models. It communicates with PC system directly through USB connector. You can see how superior the design is in sensitivity, accuracy and friendly operation. The touch panel driver emulates mouse left and right button function and supports operation systems as following. Professional solutions, one-stop shopping. Send an inquiry to contact us for more information!
ETP-MB-R4502UPEG LCD Controller Board Specifications:
Circuit Board Dimension
20mm x 70mm (0.79 inches x 2.75 inches)
Relative Humidity
95% at 60 ℃, RH Non-condensing
-25 to 80 ℃
-55 to 150 ℃
USB: 1.1 Full Speed
Resolution
2048 × 2048 resolution
Report Rate
USB: Max. 200 points/sec
Response Time
Max. 20 ms
Attached Cable
180cm shielded cable with USB-A connector
EMI
Unaffected by environmental EMI
Power Requirements
D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)
Regulatory Approvals
FCC-B , CE, Unaffected by EMI from other nearly CRTs and other display devices CRTs
Panel Resistance
4 wire resistive model: 200 ~ 900 ohm; 5 wire resistive model: 50 ~ 200 ohm
1. What is the operating temperature range of the touch screen? A: The operating temperature ranges from -20°C to 70°C, while the storage temperature ranges from -40°C to 85°C.
2. Does the resistive touch screen support touch input while wearing gloves? A: Yes, it does. As a 5-wire resistive touchscreen, it operates based on pressure sensitivity; therefore, it functions normally whether or not the user is wearing gloves, making it ideal for use in industrial sites and medical environments.
3. What is the service life of this touch screen? A: The single-point click lifespan reaches up to 10 million cycles (10,000,000 clicks), far exceeding that of standard resistive screens and significantly reducing the frequency of equipment maintenance.
5. Can I purchase samples for testing first? A: Yes, you can. We offer paid samples with a minimum order quantity of just one unit, allowing you to conduct testing and verify satisfaction before proceeding with a bulk purchase.
5. In which industries and types of equipment are your resistive touch screens typically used? A: Our resistive touch screens are widely utilized in equipment that demands high levels of stability and durability—such as industrial control panels, medical monitoring devices, military vehicle terminals, outdoor self-service kiosks, EV charging stations, and fuel dispensers.
